Great Payload Compatibility
With over 40 years of experience in R&D and manufacturing

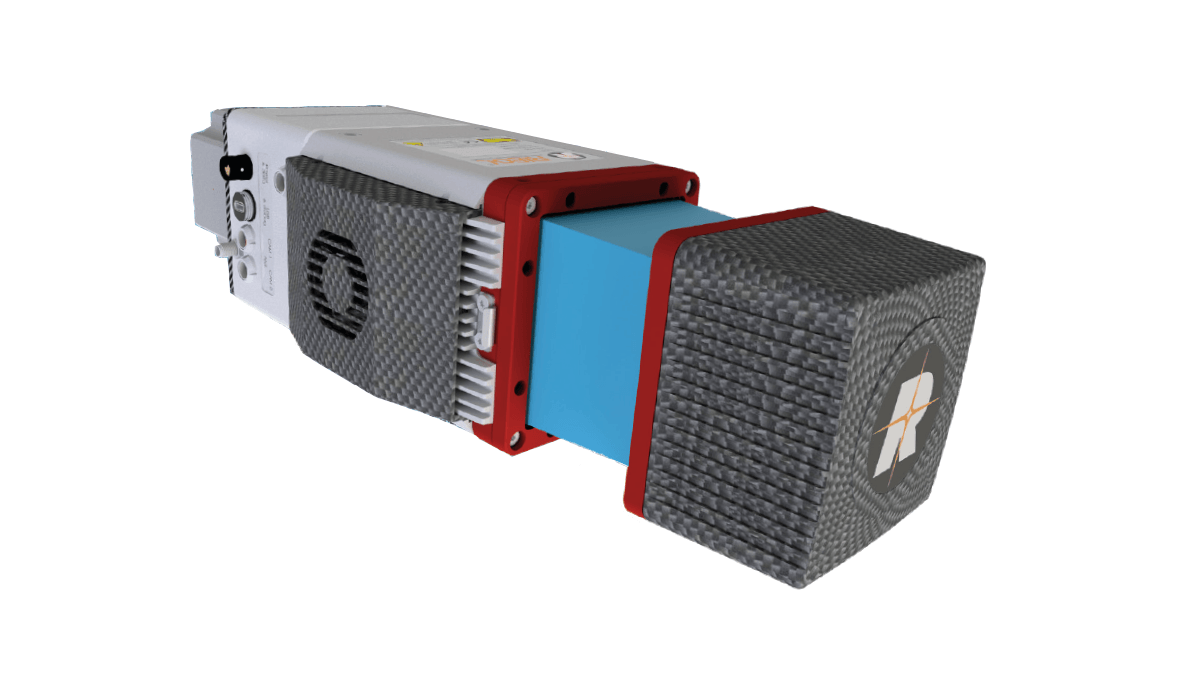

of laser rangefinders, distance meters and scanners, RIEGL are one of the world leaders in producing LiDAR scanners for unmanned aircraft.
Unmanned LiDAR platforms are now enabling surveyors to undertake operations in areas previously deemed too difficult to reach or too dangerous to survey using traditional methods.
The Dark Matter® hX Gen 2 paired with some RIEGL LiDAR scanners present the perfect combination of a reliable, safe and
proven aircraft carrying scanners that can produce a
highly accurate point cloud for various aerial applications.
MiniVUX-3UAV
The RIEGL miniVUX-3UAV is an extremely lightweight airborne laser scanner, designed specifically for integration with UAS/UAV/RPAS. The sister type of the proven RIEGL miniVUX-2UAV and RIEGL miniVUX-1UAV sensor offers a selectable 100 kHz, 200 kHz, and 300 kHz laser pulse repetition rate (PRR). With 300 kHz PRR, the sensor provides up to 100,000 measurements per second at 120° FoV and thus a dense point pattern on the ground for UAV-based applications that require the acquisition of small objects.
YellowScan manufacture ultra-light and easy to use UAV-based data collection tools.
With more than ten years of experience, YellowScan devices are field tested all over the world in a wide array of environments and can cover many applications from forestry to powerline inspections.

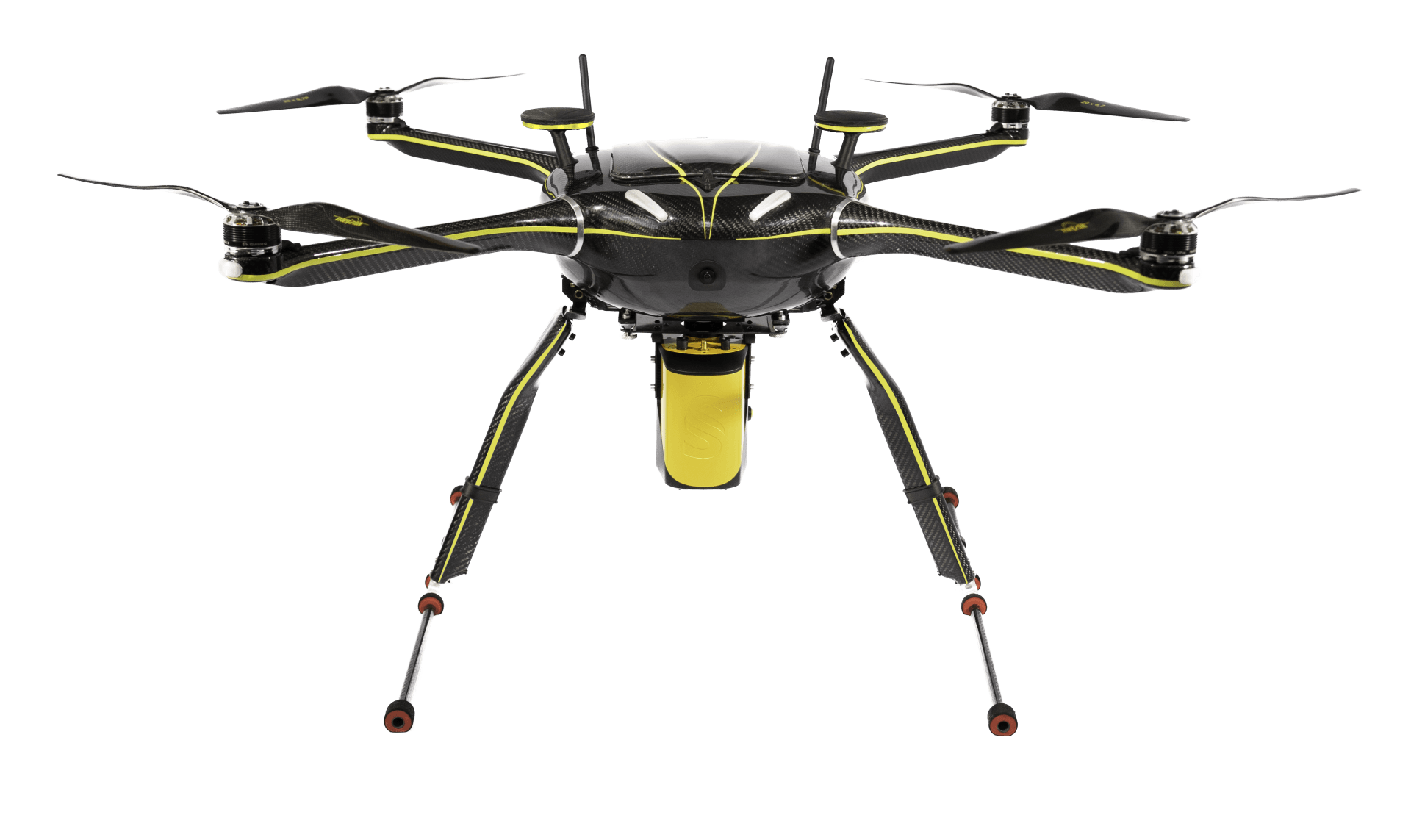

The lightweight YellowScan payloads are easily mounted underneath a Dark Matter® hX or qD Gen 2 without compromising flight times.

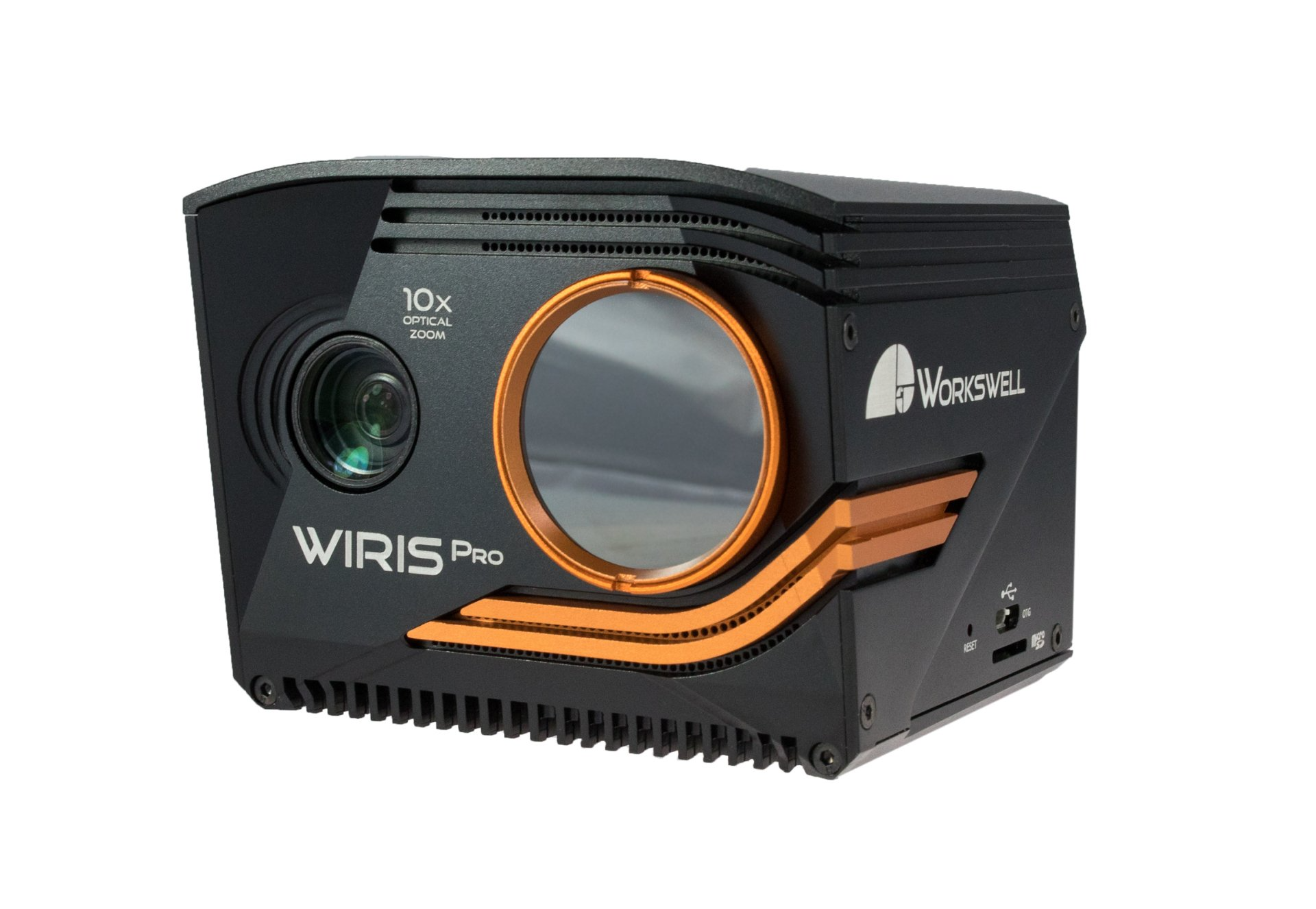

Wiris Pro
The Wiris Pro is a radiometric dual sensor camera with an IR sensor resolution of 640x512px and a 10x zoom on daylight camera.
It comes with: 128GB or 256GB SSD internal
9Hz or 30Hz frame rate
Lens of 9mm, 13mm or 19mm
50mK sensitivity
The Wiris ProSC option offers 30mK sensitivity for unmatched measurement accuracy.

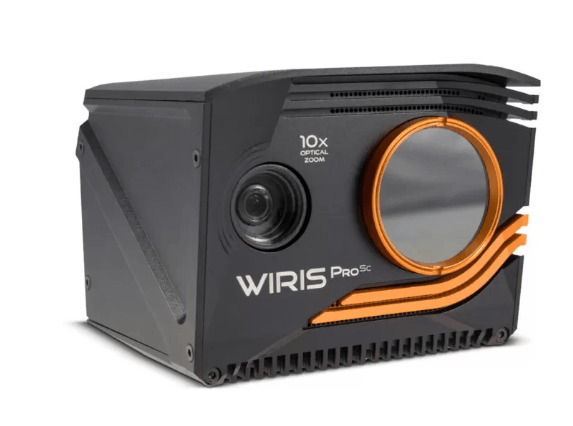

Wiris ProSC
The Workswell WIRIS ProSC is a state-of-the-art thermal imaging camera designed for the most demanding applications, including geological, archeological, and forestry studies, ecological and environmental research, structural investigations into dams, chimneys, and bridges, and a variety of other advanced projects.
WIRIS PROSC FEATURES:
WIRIS Data SDK and Ethernet Stream SDK
Premium temperature sensitivity – 30 mK
2x sw CorePlayer license
2x user exchangable lens

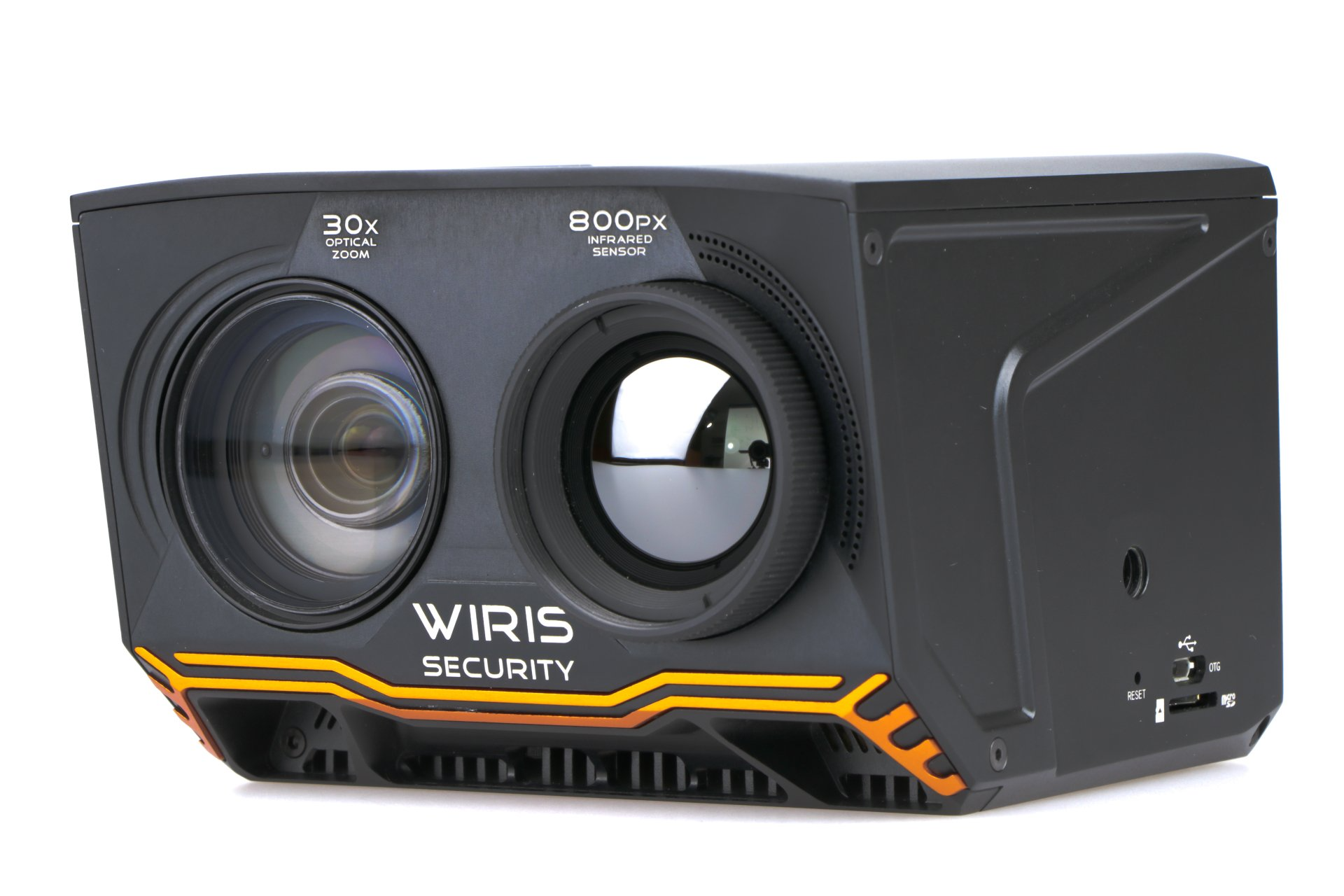

Wiris Security
The Wiris Security is a dual sensor camera with an excellent IR sensor resolution of 800x600px and a 30x RGB optical zoom.
It comes with: 256GB or 512GB SSD internal
9Hz or 25Hz frame rate
Lens of 35mm
Description Title

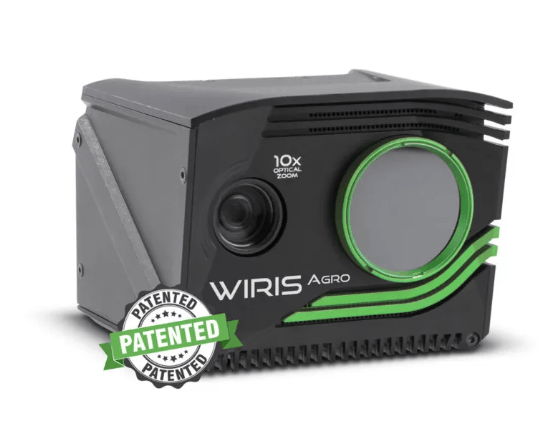

The Workswell WIRIS Agro R is the first device of its kind. Designed to map water stress across large areas, the Agro has a critical role to play in the field of precision agriculture. The device facilitates the determination of the water stress value in a given stand of plants. This information can then be used to determine yield maps, optimize irrigation, and fine-tune water management strategies.
MiniVUX-3UAV
The RIEGL miniVUX-3UAV is an extremely lightweight airborne laser scanner, designed specifically for integration with UAV. The sister type of the proven RIEGL miniVUX-2UAV and RIEGL miniVUX-1UAV sensor offers a selectable 100 kHz, 200 kHz, and 300 kHz laser pulse repetition rate (PRR). With 300 kHz PRR, the sensor provides up to 100,000 measurements per second at 120° FoV and thus a dense point pattern on the ground for UAV-based applications that allows the acquisition of small objects.

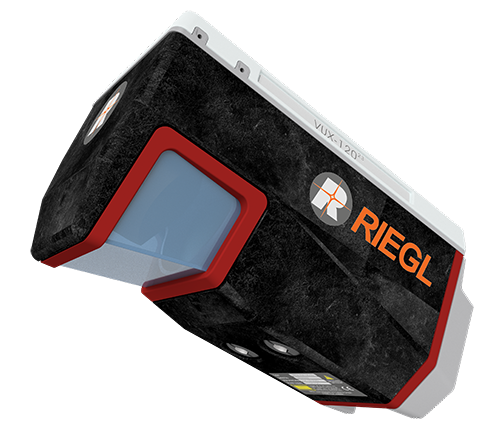

VUX-120(23)
The RIEGL VUX-120²³ is a lightweight and versatile airborne laser scanner offering a wide field of view of 100 degrees and an extremely high pulse repetition rate of up to 2.4 MHz.
The measuring beam of the RIEGL VUX-120²³ is consecutively emitted in three different directions: it alternates from strictly nadir, to +10 degrees forward, and to -10 degrees backward.
It is perfectly suited for high point density corridor mapping applications.

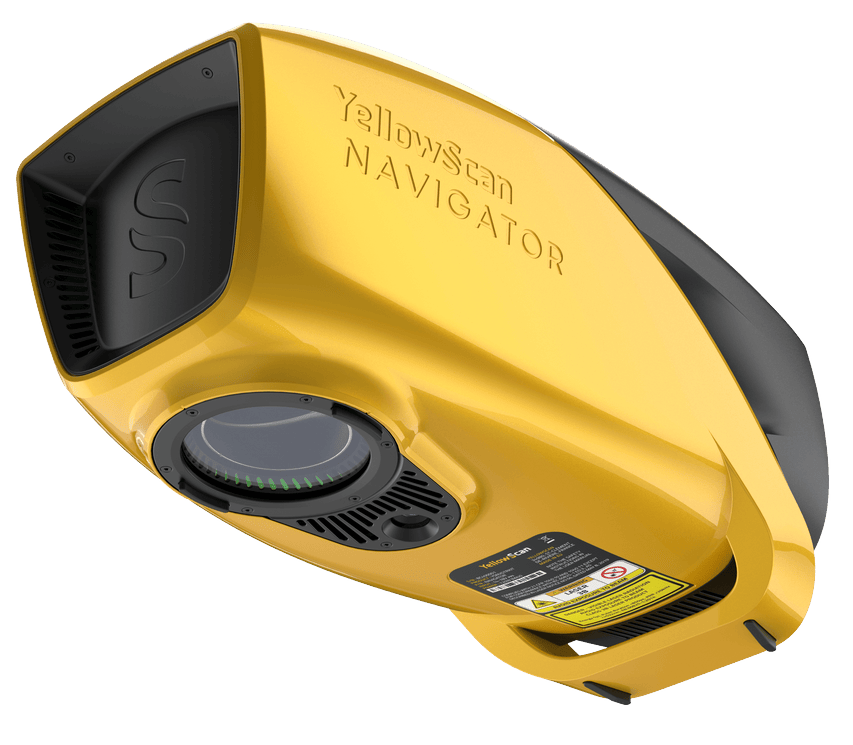

YellowScan Navigator
The Navigator is a bathymetric LiDAR scanner perfect for shallow waters surveying and that ensures continuity between underwater points and the surrounding terrain.
With a 44-degree field of view, the maximum angle for a green laser to perform underwater, it can be flown at up to 100m AGL.
The Navigator features an embedded camera (global shutter) that can be used for colorization purposes.
The Navigator, weighing just 3.7kg (excl. battery), can easily be integrated into our Dark Matter hX Gen 2 platform.

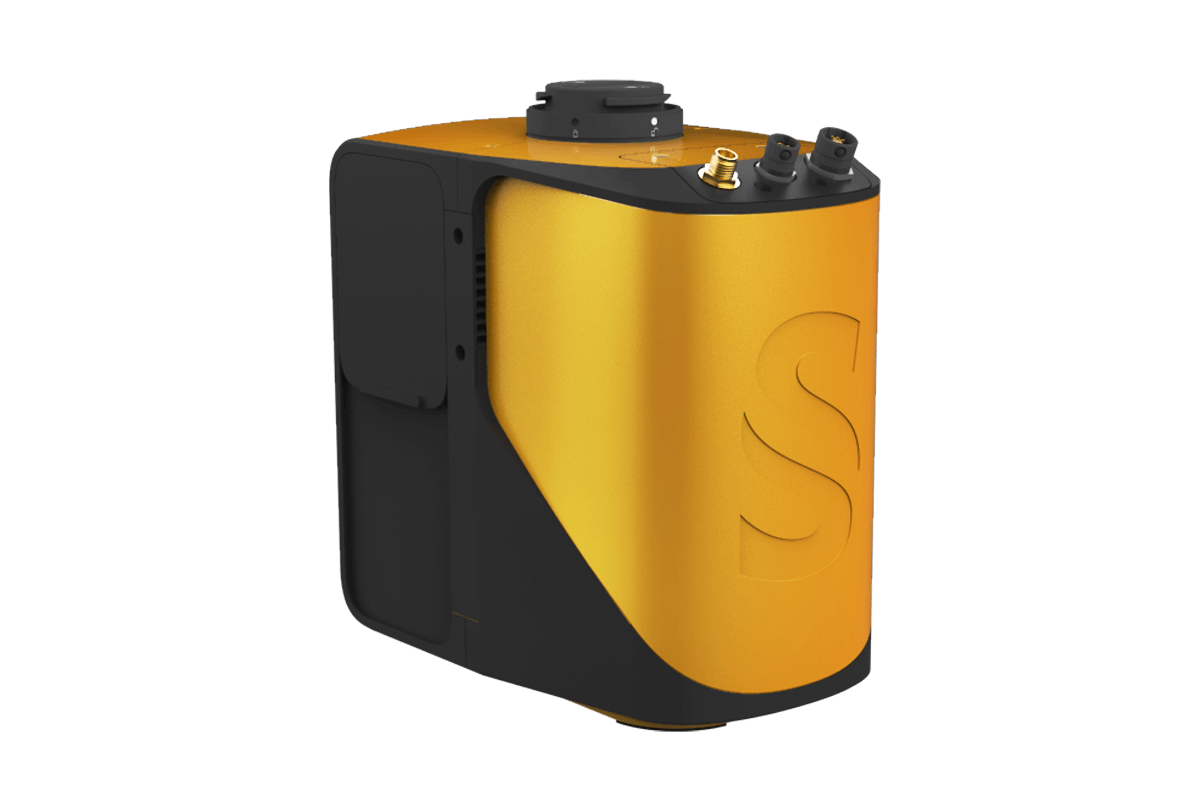

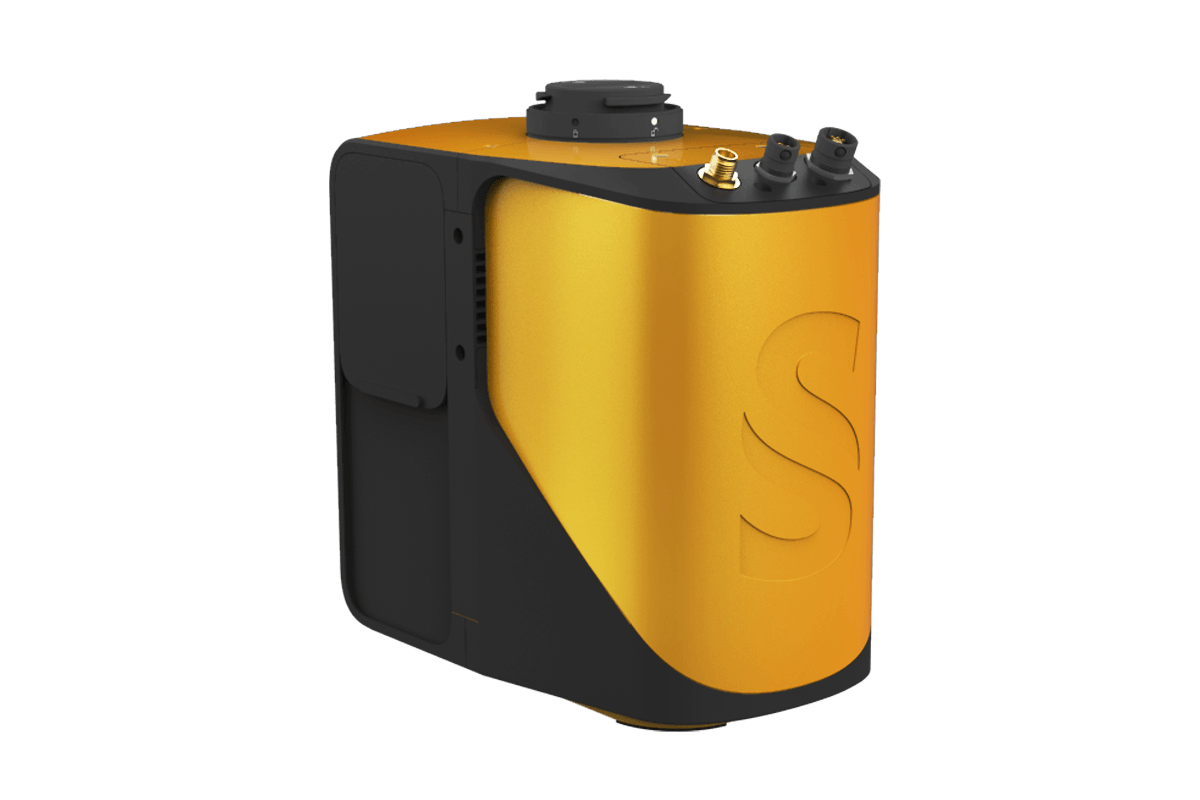

Mapper
The incredibly lightweight Mapper doesn't sacrifice accuracy and features in order to save weight. With one of the best cost-performance ratios on the market, the Mapper features a Livox Horizon Laser Scanner, an Applanix APX-15 IMU and a high performance GNSS antenna. Furthermore, the Mapper can be powered from our Dark Matter platform or run on its own battery. It boasts IP55 protection and has been designed with practicality in mind to help protect it during everyday use.

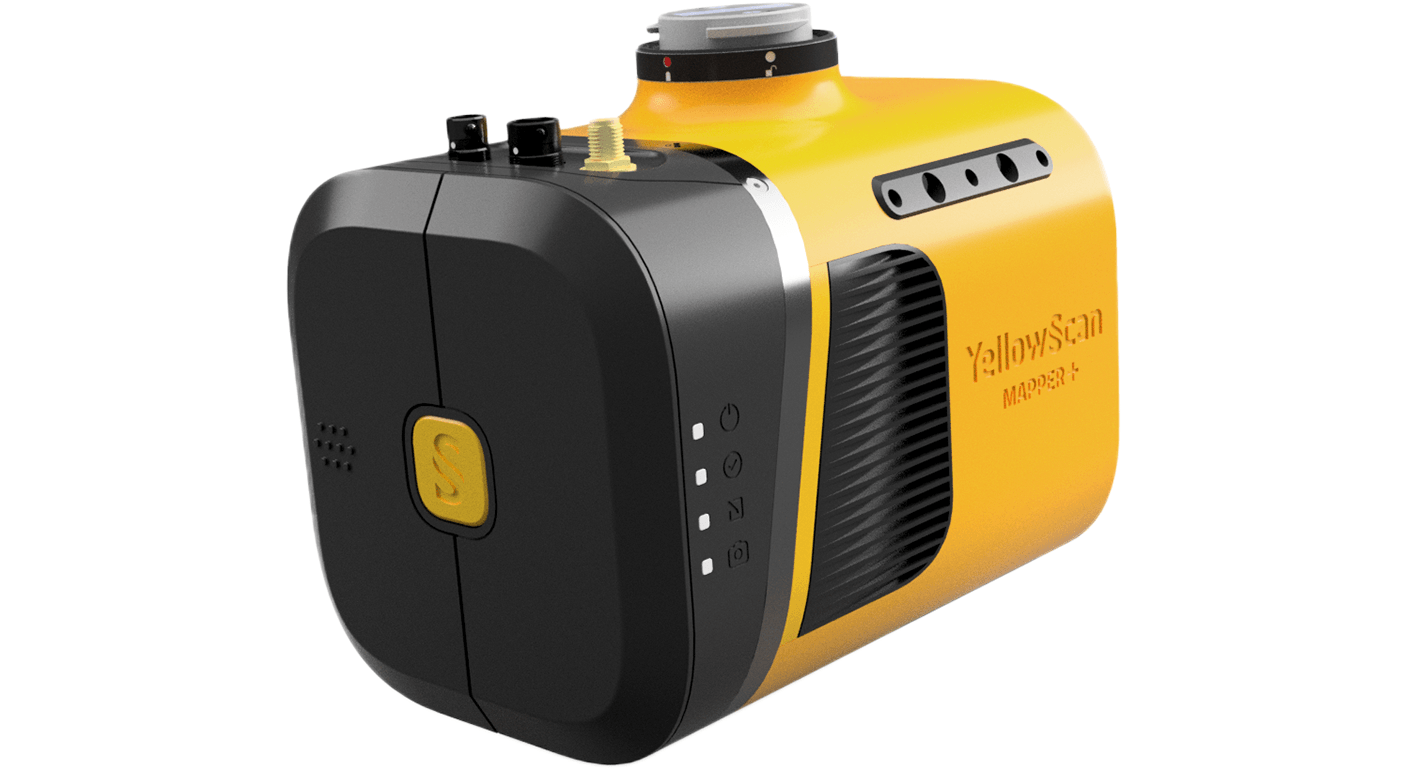

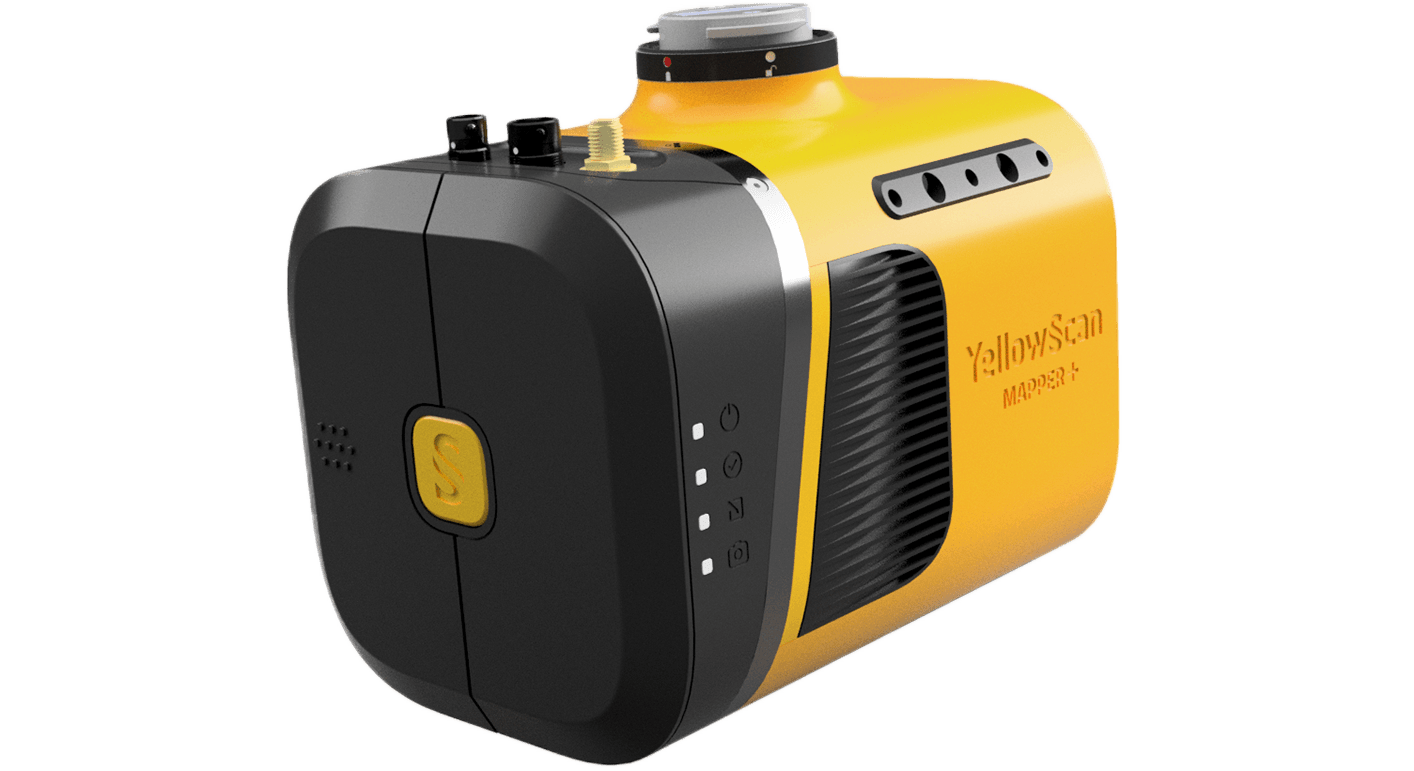

Mapper +
The Mapper + is a lightweight LiDAR scanner that produces a high point density even when flying at higher altitudes. The Mapper + is equipped with a Livox AVIA laser scanner as well as an Applanix APX-15UAV IMU. This allows it to achieve high levels of precision and accuracy, even when flying at altitudes of 120m AGL. Like the Mapper, the Mapper + can easily be integrated into our Dark Matter platforms and can be powered directly from our drone or by its own removable battery.

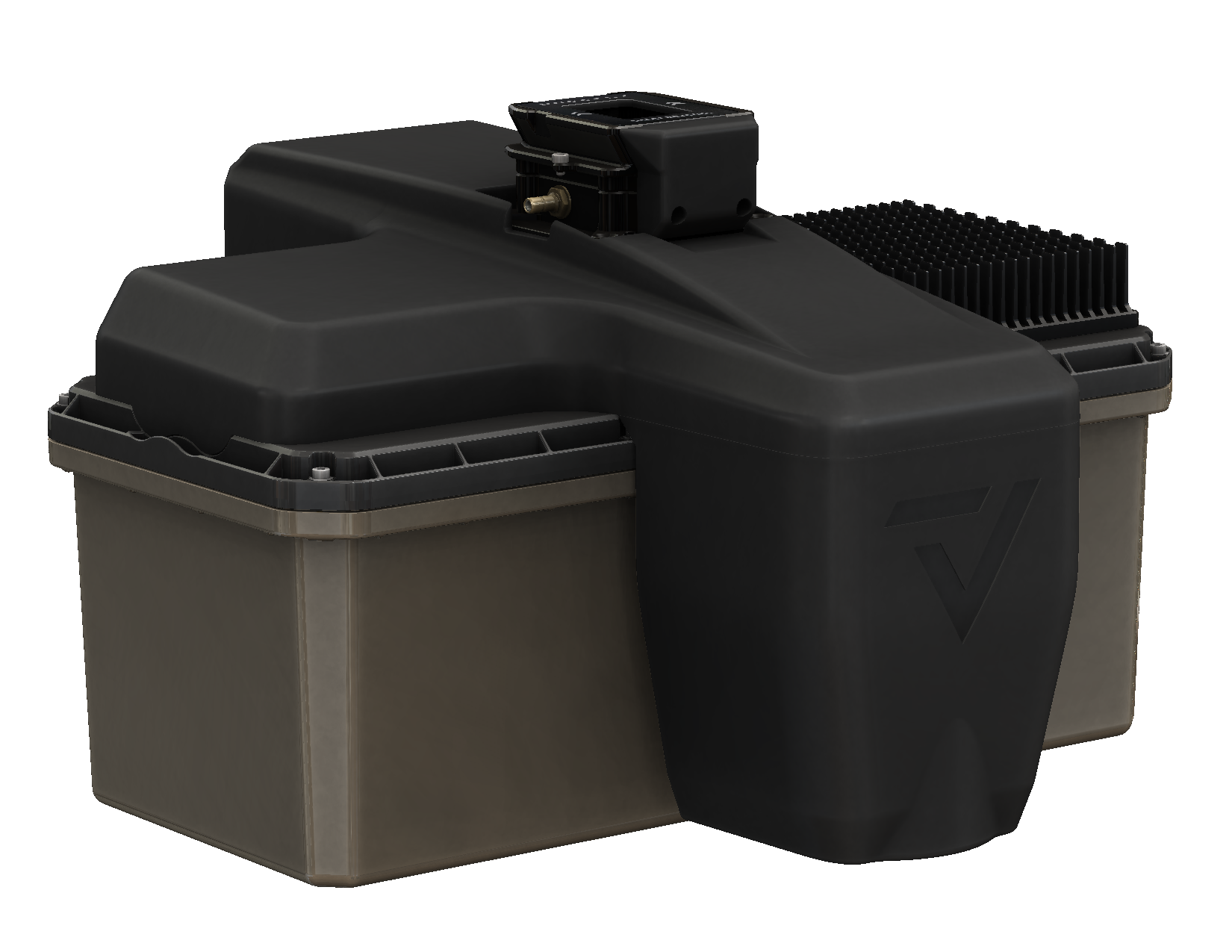

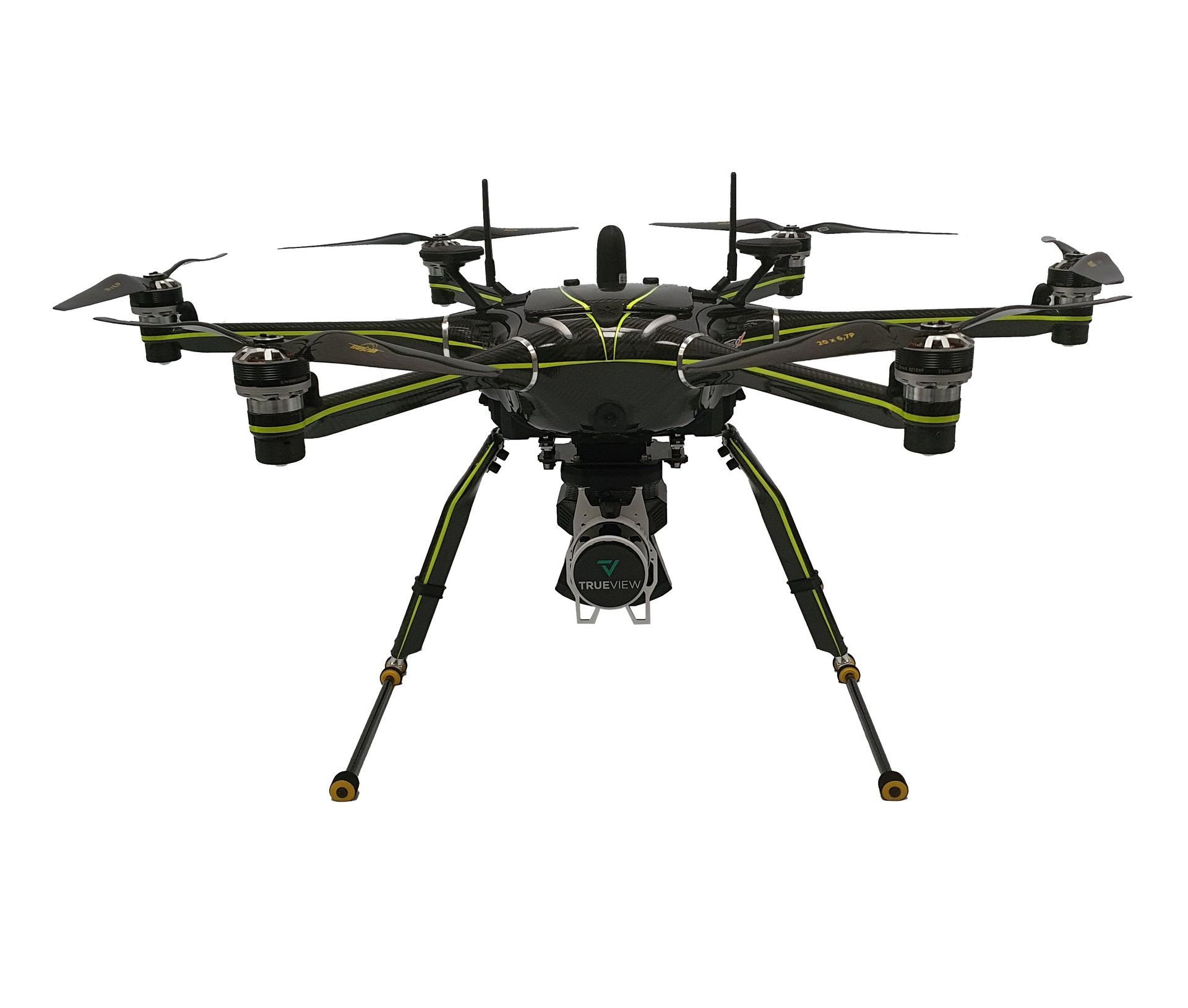

Since 2003, GeoCue are leaders in LiDAR mapping hardware and software. GeoCue joined Microdrones as another portfolio company of mdGroup in 2022.
GeoCue offers a complete range of professional LiDAR mapping software, training, and support.
Their TrueView range of LiDARs can be seamlessly integrated into the Dark Matter® platform.
MiniVUX-3UAV
The RIEGL miniVUX-3UAV is an extremely lightweight airborne laser scanner, designed specifically for integration with UAS/UAV/RPAS. The sister type of the proven RIEGL miniVUX-2UAV and RIEGL miniVUX-1UAV sensor offers a selectable 100 kHz, 200 kHz, and 300 kHz laser pulse repetition rate (PRR). With 300 kHz PRR, the sensor provides up to 100,000 measurements per second at 120° FoV and thus a dense point pattern on the ground for UAV-based applications that require the acquisition of small objects.

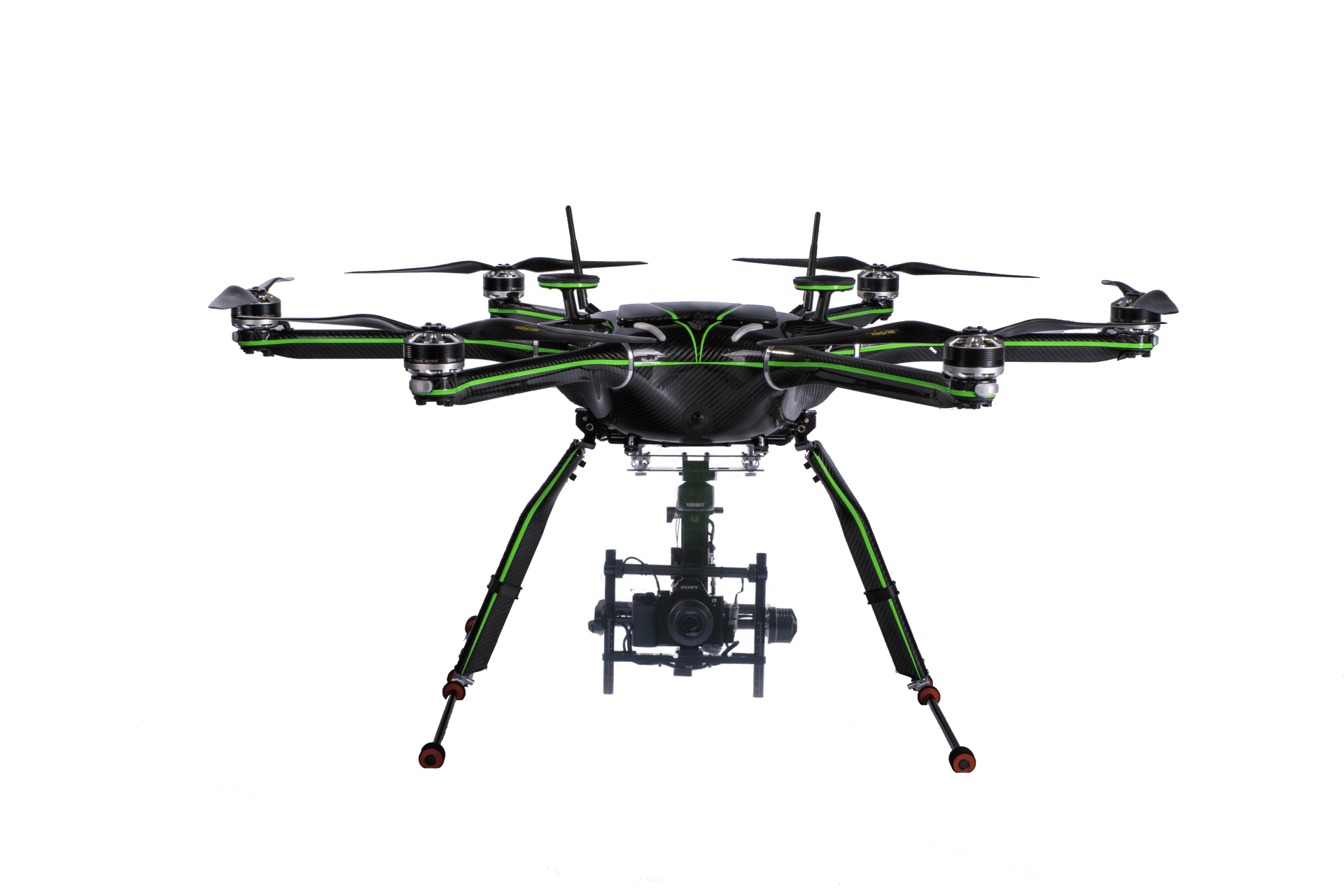

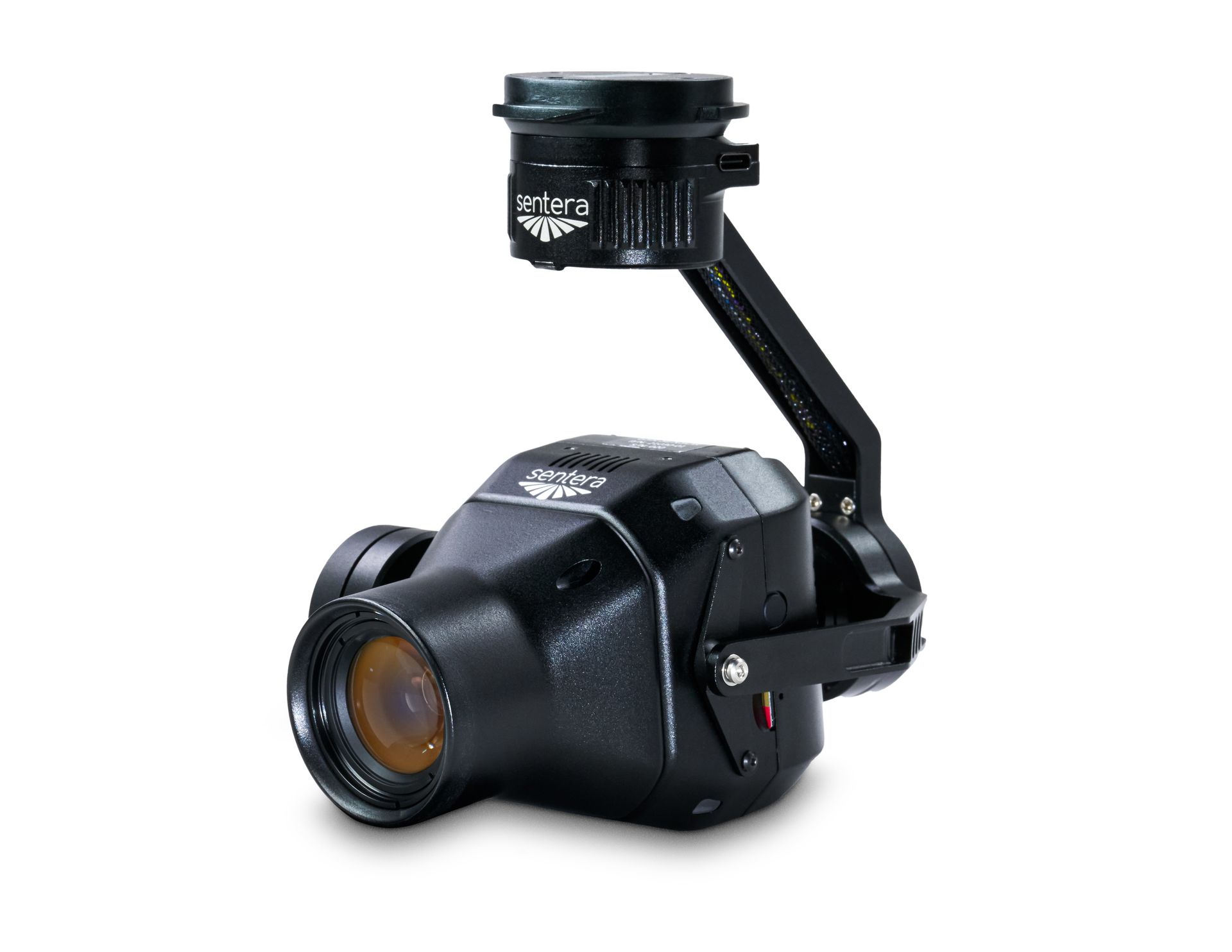

Need to carry a specialist payload for surveying or other aerial camera based work?
Using Gremsy gimbals, we can integrate a wide array of specialist payloads to suit your exact needs.
Clogworks® have integrated various payloads with Gremsy gimbals since 2015 and are the perfect solution for mounting nearly any type of camera.

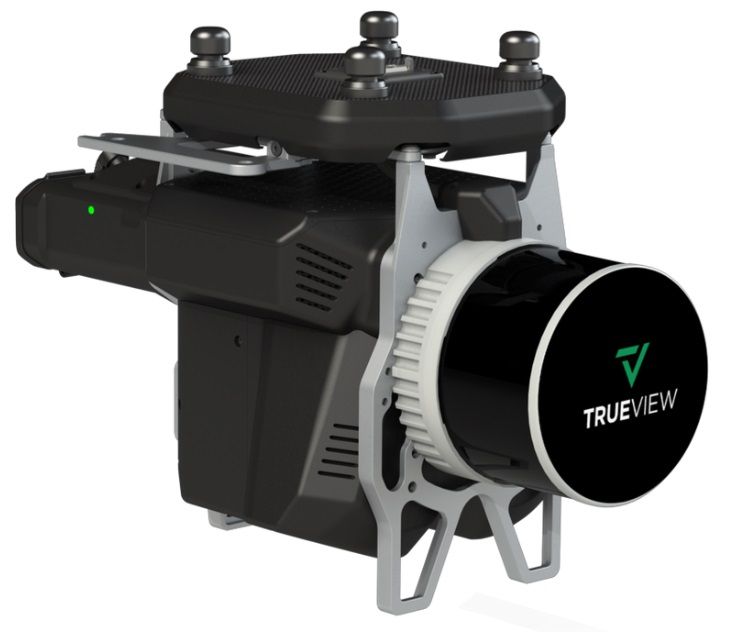

TV535c
The Trueview TV535c is a very capable light-weight Lidar (only 2 kg fully integrated) with 3 returns and 3 integrated 26MP cameras (1 nadir and 2 obliques).
Scanner Performance:
Precision: 5 mm
Accuracy: 20 mm
It comes with LP360 software for data processing.

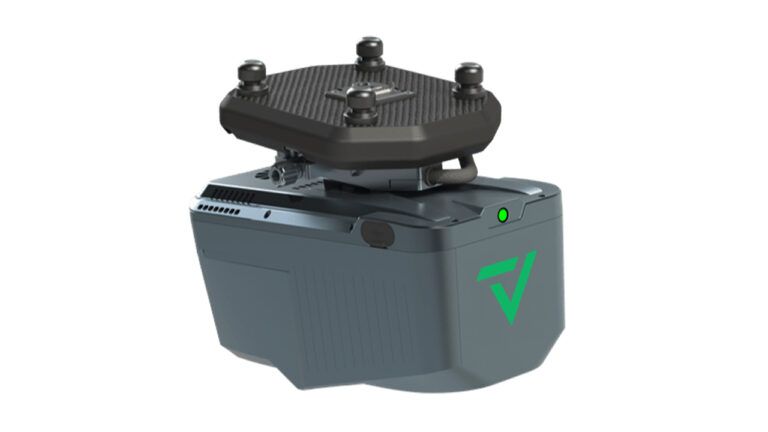

TV540
The Trueview TV535c is a very capable light-weight Lidar with 8 returns and a 45 MP Global Shutter Full frame Camera.
Scanner Performance:
Precision: 5 mm
Accuracy: 15 mm
It comes with LP360 software for data processing.
S1
Meet S1V3 - the most lightweight yet multi-load gimbal for mappers, surveyors and industry experts in any aerial missions.
This 3-axis gimbal has a pan axis control of ±345°, a tilt axis of ±120° and a roll axis of ±45° and can carry a camera of up to 750g.
It is compatible with the following camera types:
- Flir
- Workswell Wiris
- TeAx
- Keii
- MicaSense RED Edge
- Sony
Pixy U
Adapting to various aerial missions has never been so fast and straightforward. Thanks to tilt axis rebuilt, just one Pixy U is enough to fit multiple camera mounting. It's time to get the best from your universal cameras system.
Small, ultra-lightweight, and effortless to use. Pixy U is the indispensable gimbal for any circumstances.
The Pixy U 3-axis gimbal has a controlable pan axis of ±330°, tilt axis of +135° to -45° and a roll axis of ±45° and can carry a maximum payload of 465g.
It is compatible with a wide range of cameras.

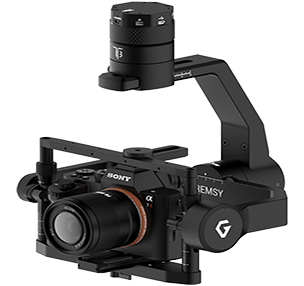

T3
Gremsy T3 (version 3) is the most advanced 3-axis camera stabilizer ready to fly with many industrial cameras for inspection, mapping and other demanding applications. Featuring onboard HDMI and AUX ports, the T3 ensures simple and clean setup as well as increased portability for your system.
The T3, 3-axis gimbal can handle a payload of up to 1.7kg and has a a controllable pan axis range of ±345°, tilt axis of ±120° and a roll axis of ±45° and can be used with a wide range of cameras, including:
- Workswell Wiris
- Canon
- Pentax
- Panasonic
- Sony
- Phase One
- UMC
- FUJIFILM
MiniVUX-3UAV
The RIEGL miniVUX-3UAV is an extremely lightweight airborne laser scanner, designed specifically for integration with UAS/UAV/RPAS. The sister type of the proven RIEGL miniVUX-2UAV and RIEGL miniVUX-1UAV sensor offers a selectable 100 kHz, 200 kHz, and 300 kHz laser pulse repetition rate (PRR). With 300 kHz PRR, the sensor provides up to 100,000 measurements per second at 120° FoV and thus a dense point pattern on the ground for UAV-based applications that require the acquisition of small objects.
Established in 2005, Shenzhen Viewpro is a hi-tech manufacturer specialising in R&D and manufacturing of
cutting-edge zoom gimbal cameras for industrial and commercial Unmanned Aerial Vehicles.

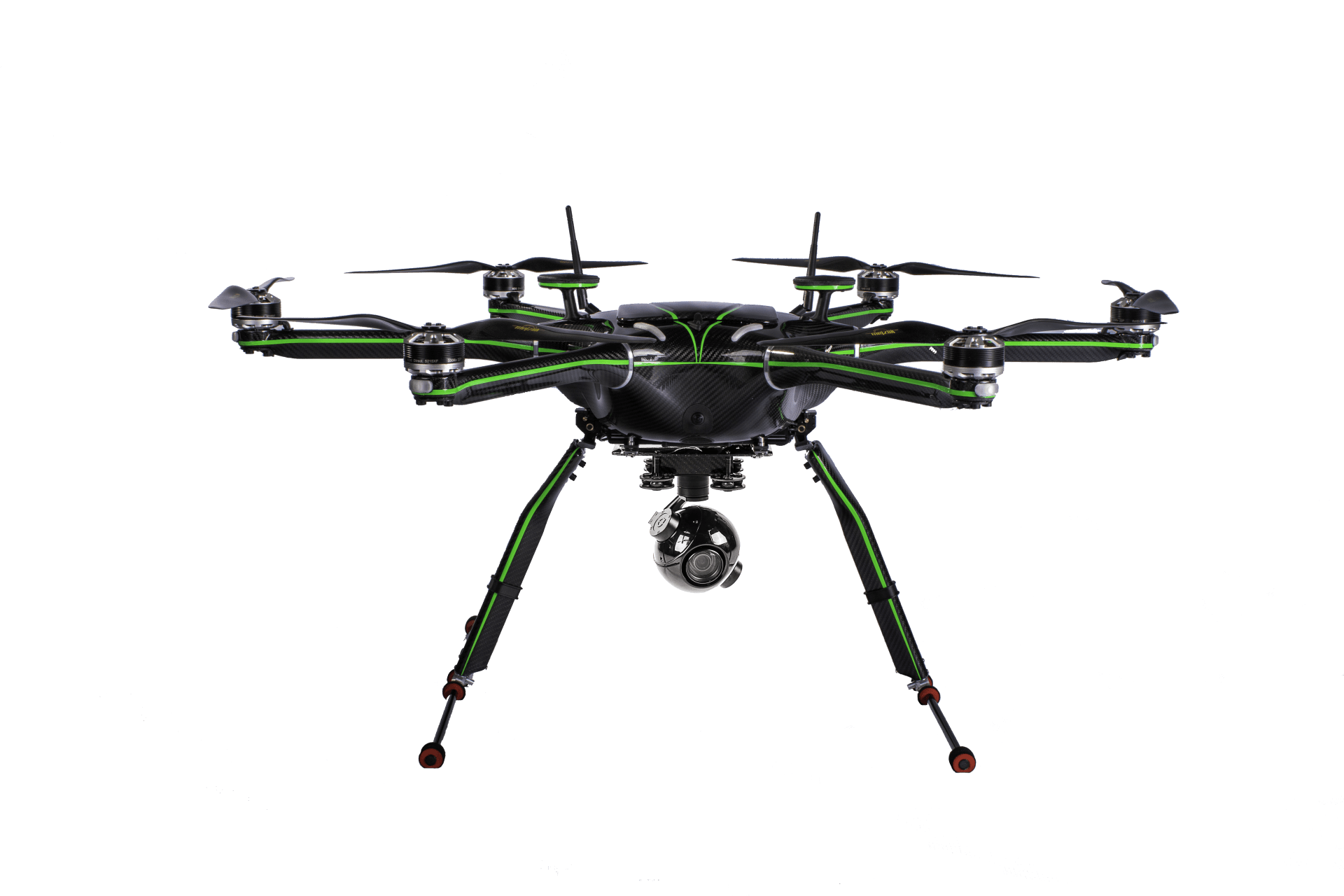

Viewpro manufacture various gimbal mounted payloads, most of which can be seamlessly integrated into the Dark Matter® platform.
MiniVUX-3UAV
The RIEGL miniVUX-3UAV is an extremely lightweight airborne laser scanner, designed specifically for integration with UAS/UAV/RPAS. The sister type of the proven RIEGL miniVUX-2UAV and RIEGL miniVUX-1UAV sensor offers a selectable 100 kHz, 200 kHz, and 300 kHz laser pulse repetition rate (PRR). With 300 kHz PRR, the sensor provides up to 100,000 measurements per second at 120° FoV and thus a dense point pattern on the ground for UAV-based applications that require the acquisition of small objects.
Established in 2010, Workswell develop and manufacture world leading infrared and optical payloads for UAVs.
Workswell's payloads cover a wide range of applications, like search&rescue, security, gas detection and agriculture just to name a few.

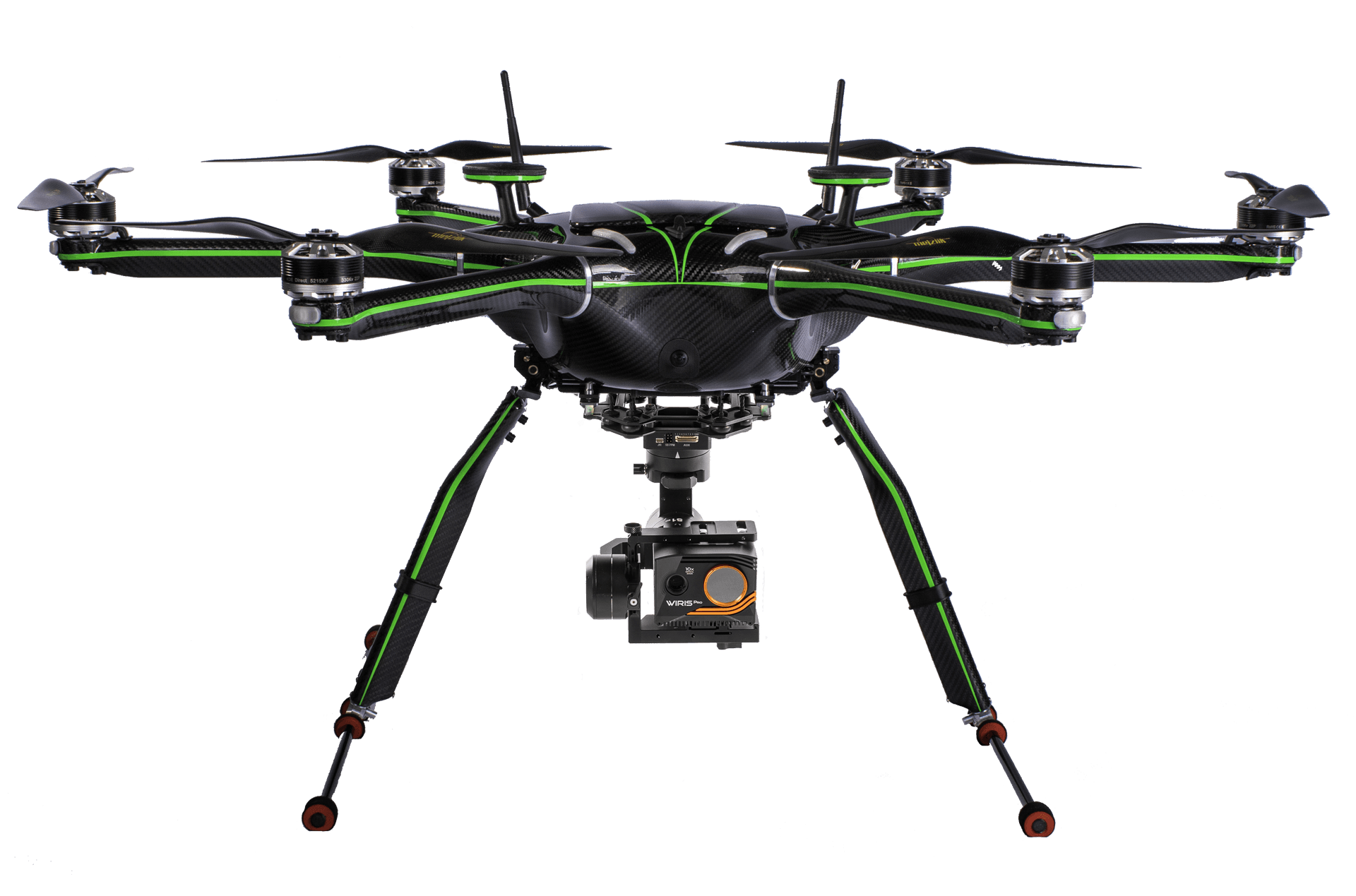

A Workswell's payload can be seamlessly integrated into any Dark Matter® aircraft to deliver unprecedented levels of accuracy.
With over 40 years of experience in R&D, and manufacturing of laser rangefinders, distance meters and scanners, RIEGL are one of the world leaders in producing LiDAR scanners for unmanned aircraft.
Unmanned LiDAR platforms are now enabling surveyors to undertake operations in areas previously deemed too difficult to reach or too dangerous to survey using traditional methods.
The Dark Matter® hX Gen 2 paired with some RIEGL LiDAR scanners present the perfect combination of a reliable, safe and proven aircraft carrying scanners that can produce a highly accurate point cloud for various aerial applications.
YellowScan manufacture ultra-light and easy to use UAV-based data collection tools.
With more than ten years of experience, YellowScan devices are field tested all over the world in a wide array of environments and can cover many applications from forestry to powerline inspections.
The lightweight YellowScan payloads are easily mounted underneath a Dark Matter® hX or qD Gen 2 without compromising flight times.

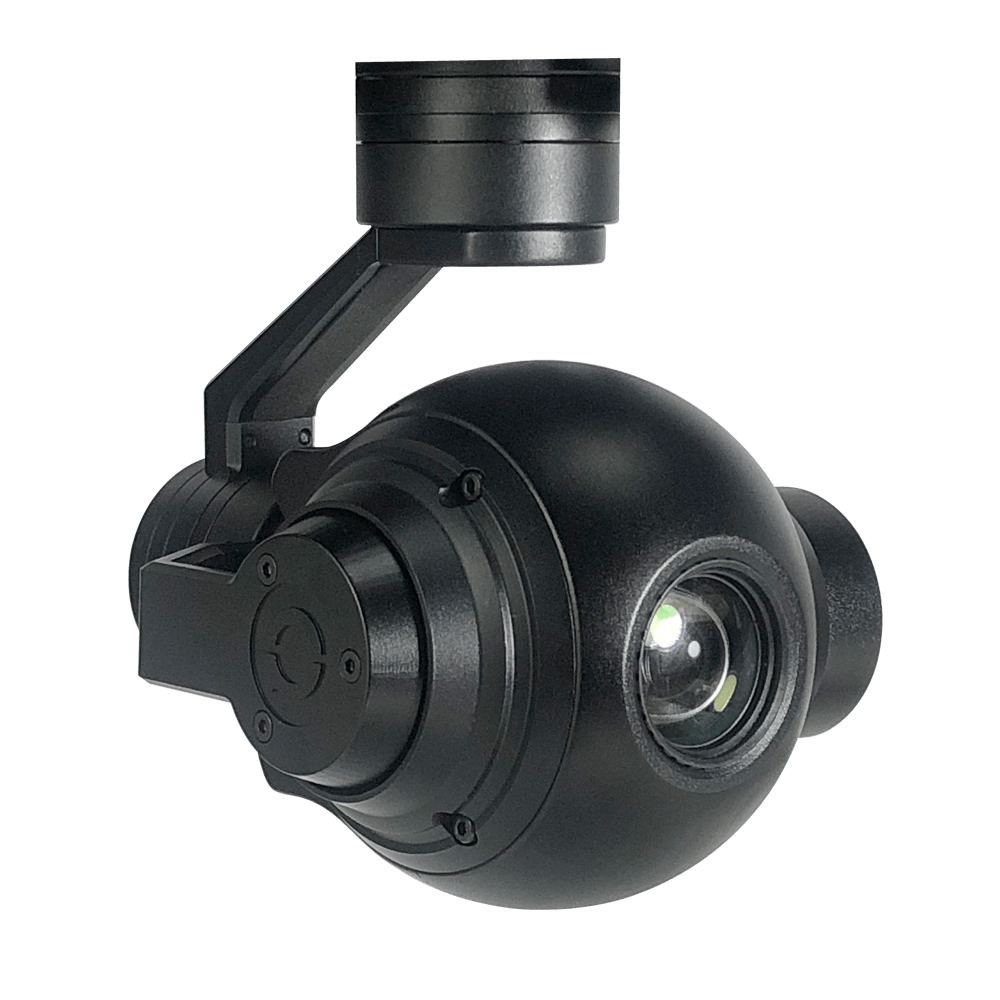

Q10F
The Q10F is a 3 axis, 1/3" CMOS sensor camera with a 10x optical zoom. With a wide range of movement combined with a SD card storage capacity of up to 32GB and a lightweight design, the Q10F is an ideal payload for security and inspection based applications.

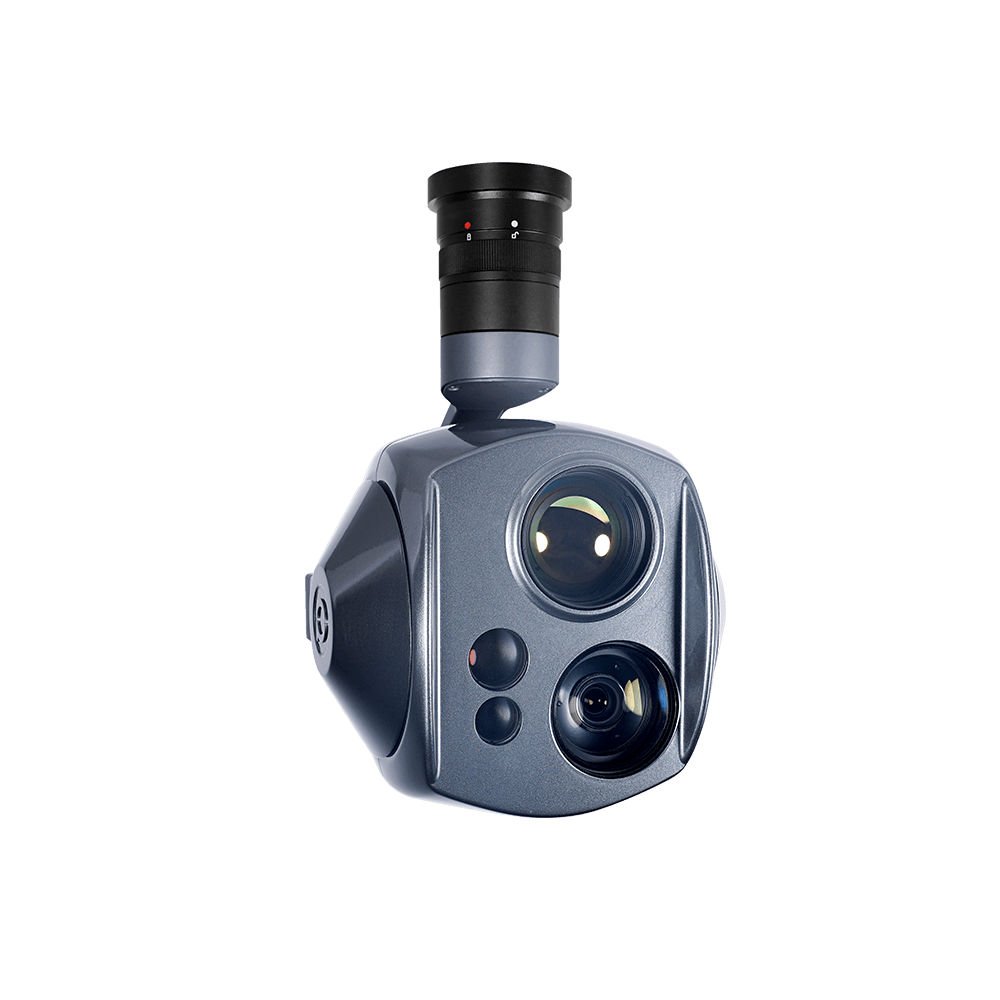

Q30TIRM Pro
The Q30TIRM Pro is a powerful 3-axis gimbal payload that is packed full of features.
It integrates a Sony Exmore R CMOS module with a 30X optical zoom it also has the ability to clearly display images even in poor lighting conditions.
It features a 3km range finder that also can issue GPS coordinates to pinpoint its distance and exact location.
It also has a 340x480 thermal camera to assist in various aerial applications.

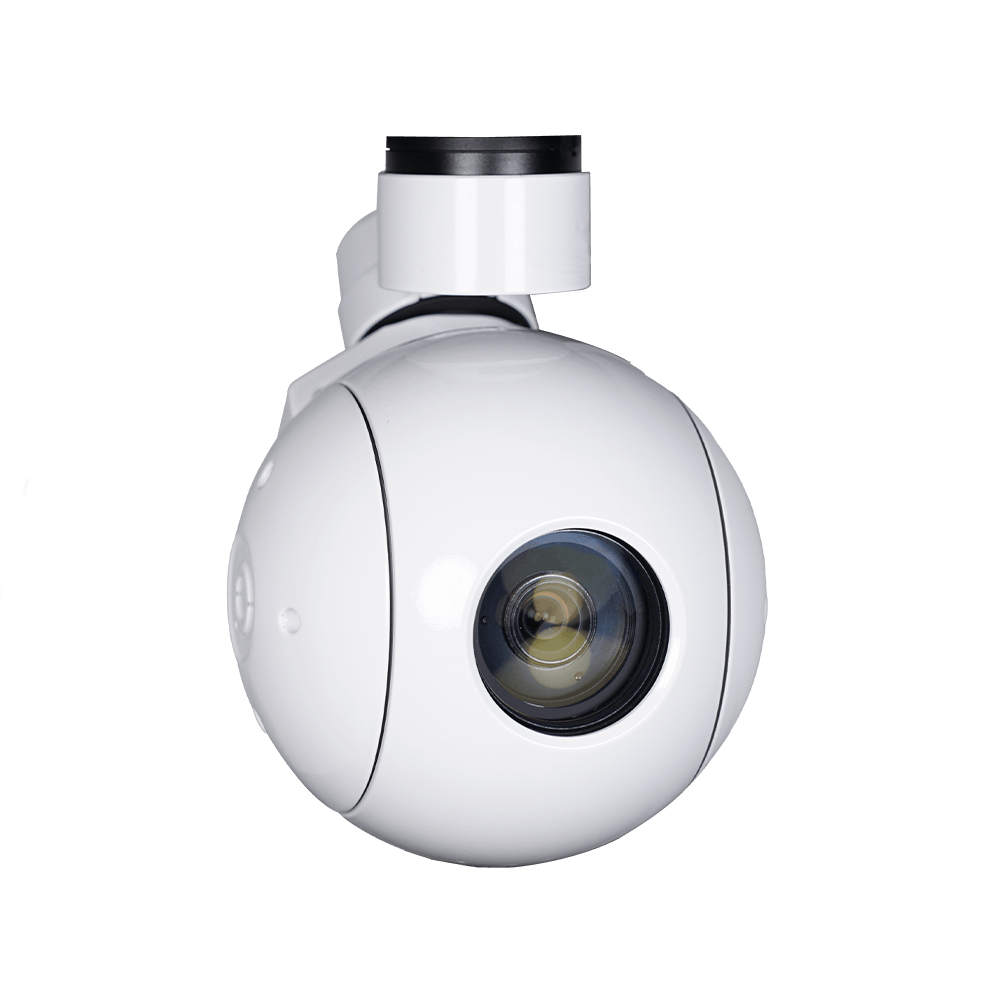

Q30T Pro 2
The Viewpro Q30T Pro 2 is a 30x optical zoom object tracking gimbal camera.
It sports a Sony 1/2.8" "Exmoor R" CMOS sensor and has a local SD card storage capacity of up to 128GB.

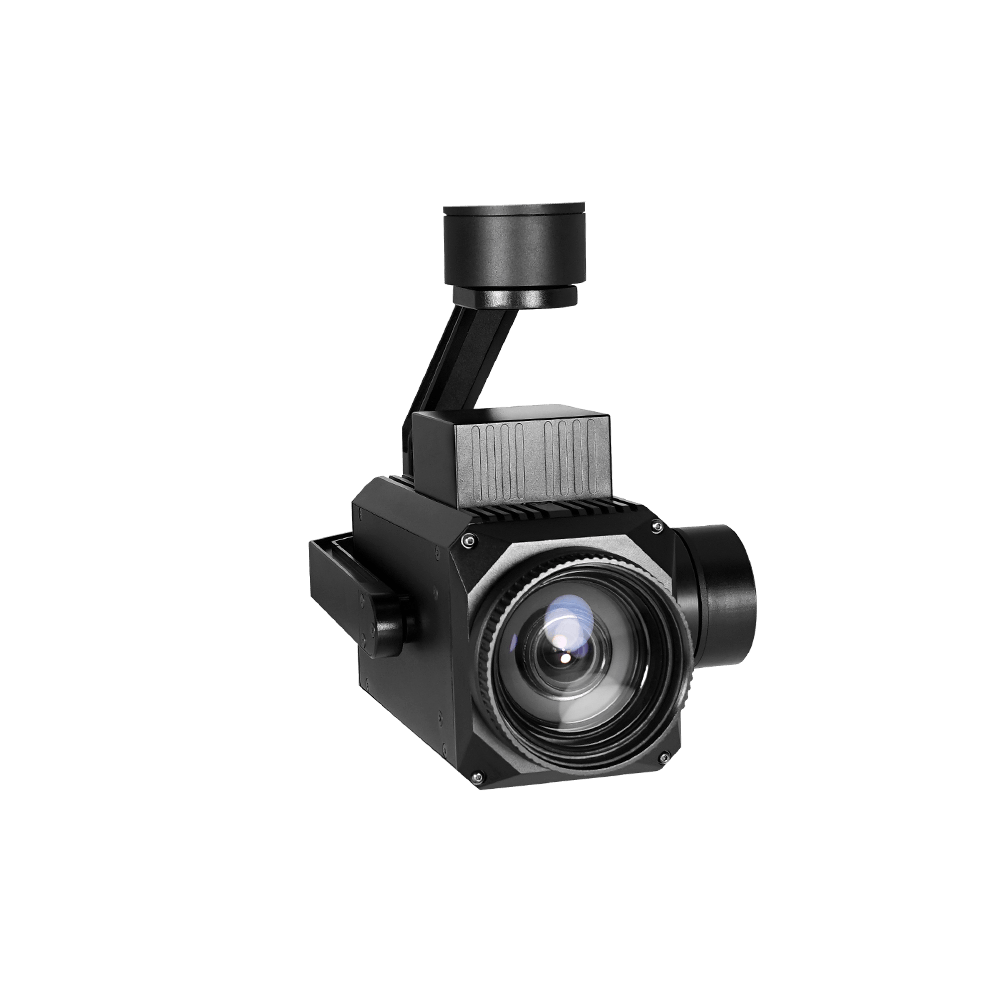

Z36T Cube
The Viewpro Z36T Cube is powered by a 1/1.9" CMOS sensor module. Thanks to starlight level ultra-low illumination, the Z36T can still clearly display image features, even in a poorly lit environment.
It sports a 36x optical zoom and local storage SD supports up to 128GB.

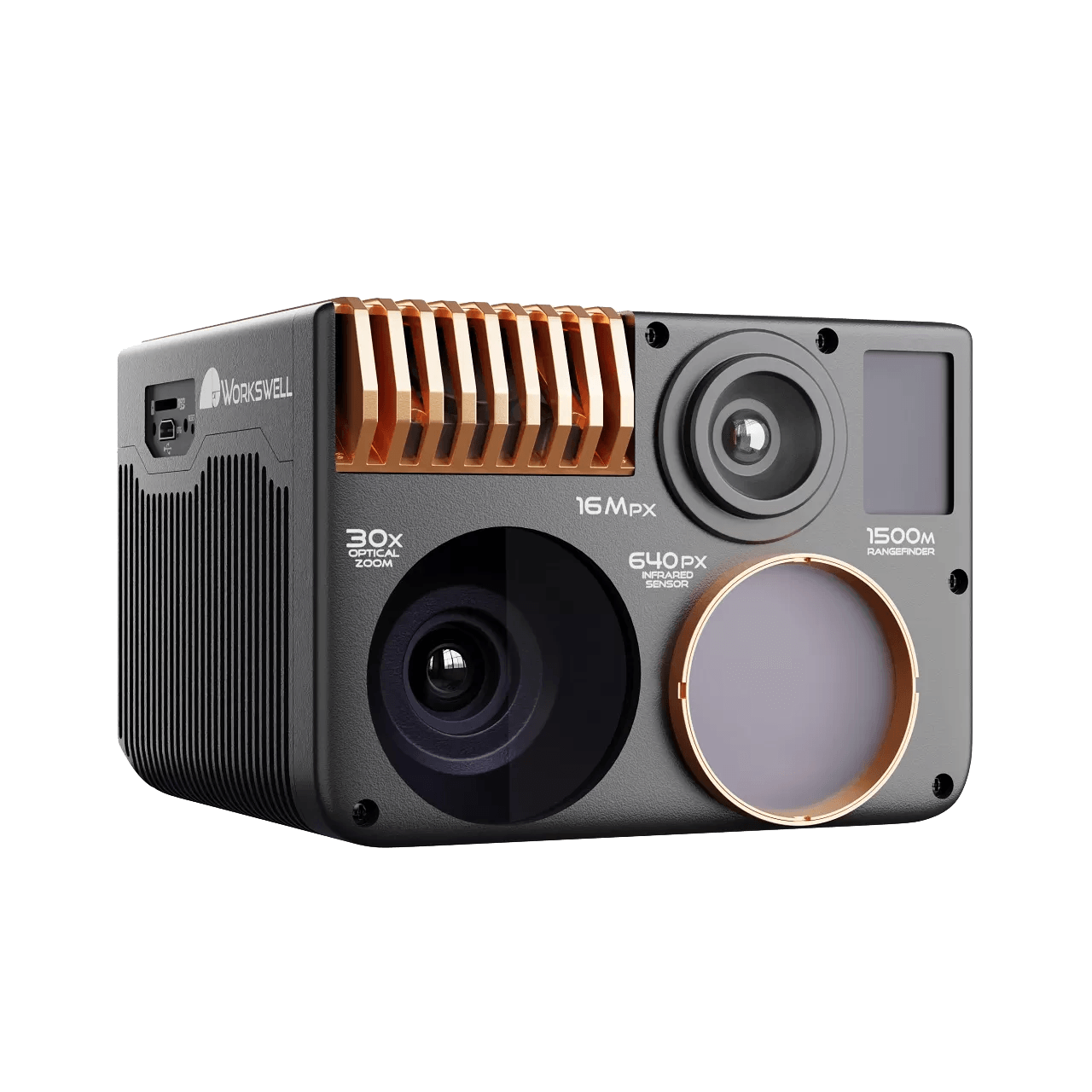

Wiris Enterprise
The Wiris Enterprise is an advanced multi sensor camera specifically designed to be used with UAVs. The enterprise can cover a wide range of aerial applications and only weighs 680 grams.
The payload boasts:
- 30X optical RGB zoom with night vision mode
- 640 x 512 thermal camera with an IR super resolution mode and 12 step digital zoom.
- IP54 rated (IP66 certification avialable on request)
- Optional laser range finder (up to 1500m)
Wiris Pro
The Wiris Pro is a radiometric dual sensor camera with an IR sensor resolution of 640x512px and a 10x zoom on daylight camera.
It comes with: 128GB or 256GB SSD internal
9Hz or 30Hz frame rate
Lens of 9mm, 13mm or 19mm
50mK sensitivity
The Wiris ProSC option offers 30mK sensitivity for unmatched measurement accuracy.

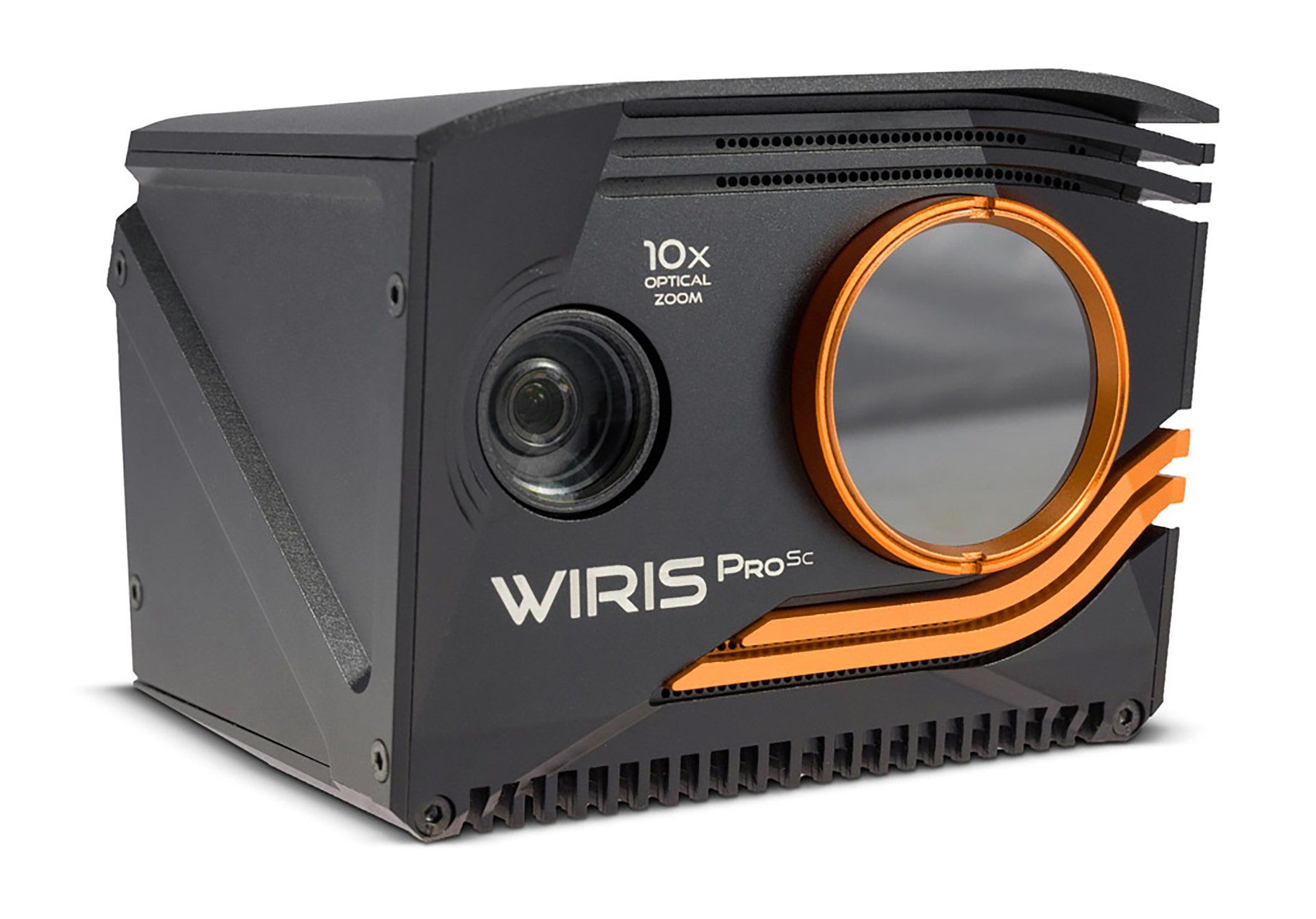

Wiris ProSC
The Workswell WIRIS ProSC is a state-of-the-art thermal imaging camera designed for the most demanding applications, including geological, archeological, and forestry studies, ecological and environmental research, structural investigations into dams, chimneys, and bridges, and a variety of other advanced projects.
WIRIS PROSC FEATURES:
WIRIS Data SDK and Ethernet Stream SDK
Premium temperature sensitivity – 30 mK
2x sw CorePlayer license
2x user exchangable lens
MiniVUX-3UAV
The RIEGL miniVUX-3UAV is an extremely lightweight airborne laser scanner, designed specifically for integration with UAS/UAV/RPAS. The sister type of the proven RIEGL miniVUX-2UAV and RIEGL miniVUX-1UAV sensor offers a selectable 100 kHz, 200 kHz, and 300 kHz laser pulse repetition rate (PRR). With 300 kHz PRR, the sensor provides up to 100,000 measurements per second at 120° FoV and thus a dense point pattern on the ground for UAV-based applications that require the acquisition of small objects.
Established in 2005, Shenzhen Viewpro is a Hi-tech manufacturer specialising in R&D and manufacturing of
cutting-edge zoom gimbal cameras for industrial and commercial Unmanned Aerial Vehicles.
Viewpro manufacture various gimbal mounted payloads. Most of which can be seamlessly integrated in to the Dark Matter platform.
MiniVUX-3UAV
The RIEGL miniVUX-3UAV is an extremely lightweight airborne laser scanner, designed specifically for integration with UAV. The sister type of the proven RIEGL miniVUX-2UAV and RIEGL miniVUX-1UAV sensor offers a selectable 100 kHz, 200 kHz, and 300 kHz laser pulse repetition rate (PRR). With 300 kHz PRR, the sensor provides up to 100,000 measurements per second at 120° FoV and thus a dense point pattern on the ground for UAV-based applications that allows the acquisition of small objects.
VUX-120(23)
The RIEGL VUX-120²³ is a lightweight and versatile airborne laser scanner offering a wide field of view of 100 degrees and an extremely high pulse repetition rate of up to 2.4 MHz.
The measuring beam of the RIEGL VUX-120²³ is consecutively emitted in three different directions: it alternates from strictly nadir, to +10 degrees forward, and to -10 degrees backward.
It is perfectly suited for high point density corridor mapping applications.
YellowScan Navigator
The Navigator is a bathymetric LiDAR scanner perfect for shallow waters surveying and that ensures continuity between underwater points and the surrounding terrain.
With a 44-degree field of view, the maximum angle for a green laser to perform underwater, it can be flown at up to 100m AGL.
The Navigator features an embedded camera (global shutter) that can be used for colorization purposes.
The Navigator, weighing just 3.7kg (excl. battery), can easily be integrated into our Dark Matter hX Gen 2 platform.
Mapper
The incredibly lightweight Mapper doesn't sacrifice accuracy and features in order to save weight. With one of the best cost-performance ratios on the market, the Mapper features a Livox Horizon Laser Scanner, an Applanix APX-15 IMU and a high performance GNSS antenna. Furthermore, the Mapper can be powered from our Dark Matter platform or run on its own batteriy. It boasts IP55 protection and has been designed with practicality in mind to help protect it during everyday use.
Mapper +
The Mapper + is a lightweight LiDAR scanner that produces a high point density even when flying at higher altitudes. The Mapper + is equipped with a Livox AVIA laser scanner as well as an Applanix APX-15UAV IMU. This allows it to achieve high levels of precision and accuracy, even when flying at altitudes of 120m AGL. Like the Mapper, the Mapper + can easily be integrated in to our Dark Matter platforms and can be powered directly from our drone or by its own removable battery.
Since 2003, GeoCue are leaders in LiDAR mapping hardware and software. GeoCue joined Microdrones as another portfolio company of mdGroup in 2022.
GeoCue offers a complete range of professional LiDAR mapping software, training, and support.
Their TrueView range of LiDARs can be seamlessly integrated into the Dark Matter® platform.
Need to carry a specialist payload for surveying or other aerial camera based work?
Using Gremsy gimbals, we can integrate a wide array of specialist payloads to suit your exact needs.
Clogworks® have integrated various payloads with Gremsy gimbals since 2015 and are the perfect solution for mounting nearly any type of camera.
Established in 2005, Shenzhen Viewpro is a Hi-tech manufacturer specialising in R&D and manufacturing of
cutting-edge zoom gimbal cameras for industrial and commercial Unmanned Aerial Vehicles.
Viewpro manufacture various gimbal mounted payloads. Most of which can be seamlessly integrated in to the Dark Matter platform.
TV535c
The Trueview TV535c is a very capable light-weight Lidar (only 2 kg fully integrated) with 3 returns and 3 integrated 26MP cameras (1 nadir and 2 obliques).
Scanner Performance:
Precision: 5 mm
Accuracy: 20 mm
It comes with LP360 software for data processing.
TV540
The Trueview TV535c is a very capable light-weight Lidar with 8 returns and a 45 MP Global Shutter Full frame Camera.
Scanner Performance:
Precision: 5 mm
Accuracy: 15 mm
It comes with LP360 software for data processing.
S1
Meet S1V3 - the most lightweight yet multi-load gimbal for mappers, surveyors and industry experts in any aerial missions.
This 3-axis gimbal has a pan axis control of ±345°, a tilt axis of ±120° and a roll axis of ±45° and can carry a camera of up to 750g.
It is compatible with the following camera types:
- Flir
- Workswell Wiris
- TeAx
- Keii
- MicaSense RED Edge
- Sony
Pixy U
Adapting to various aerial missions has never been so fast and straightforward. Thanks to tilt axis rebuilt, just one Pixy U is enough to fit multiple camera mounting. It's time to get the best from your universal cameras system.
Small, ultra-lightweight, and effortless to use. Pixy U is the indispensable gimbal for any circumstances.
The Pixy U 3-axis gimbal has a controlable pan axis of ±330°, tilt axis of +135° to -45° and a roll axis of ±45° and can carry a maximum payload of 465g.
It is compatible with a wide range of cameras.
T3
Gremsy T3 (version 3) is the most advanced 3-axis camera stabilizer ready to fly with many industrial cameras for inspection, mapping and other demanding applications. Featuring onboard HDMI and AUX ports, the T3 ensures simple and clean setup as well as increased portability for your system.
The T3, 3-axis gimbal can handle a payload of up to 1.7kg and has a a controllable pan axis range of ±345°, tilt axis of ±120° and a roll axis of ±45° and can be used with a wide range of cameras, including:
- Workswell Wiris
- Canon
- Pentax
- Panasonic
- Sony
- Phase One
- UMC
- FUJIFILM
Established in 2010, Workswell develop and manufacture world leading infrared and optical payloads for UAVs.
Workswell's payloads cover a wide range of applications, like search&rescue, security, gas detection and agriculture just to name a few.
A Workswell's payload can be seamlessly integrated in to any Dark Matter® aircraft to deliver unprecedented levels of accuracy.
Established in 2005, Shenzhen Viewpro is a hi-tech manufacturer specialising in R&D and manufacturing of cutting-edge zoom gimbal cameras for industrial and commercial Unmanned Aerial Vehicles.
Viewpro manufacture various gimbal mounted payloads, most of which can be seamlessly integrated into the Dark Matter® platform.
Wiris Enterprise
The Wiris Enterprise is an advanced multi sensor camera specifically designed to be used with UAVs. The enterprise can cover a wide range of aerial applications and only weighs 680 grams.
The payload boasts:
- 30X optical RGB zoom with night vision mode
- 640 x 512 thermal camera with an IR super resolution mode and 12 step digital zoom.
- IP54 rated (IP66 certification avialable on request)
- Optional laser range finder (up to 1500m)
Wiris Pro
The Wiris Pro is a radiometric dual sensor camera with an IR sensor resolution of 640x512px and a 10x zoom on daylight camera.
It comes with:
128GB or 256GB SSD internal
9Hz or 30Hz frame rate
Lens of 9mm, 13mm or 19mm
50mK sensitivity
The Wiris ProSC option offers 30mK sensitivity for unmatched measurement accuracy.
Wiris ProSC
The Workswell WIRIS ProSC is a state-of-the-art thermal imaging camera designed for the most demanding applications, including geological, archeological, and forestry studies, ecological and environmental research, structural investigations into dams, chimneys, and bridges, and a variety of other advanced projects.
WIRIS PROSC FEATURES:
WIRIS Data SDK and Ethernet Stream SDK
Premium temperature sensitivity – 30 mK
2x sw CorePlayer license
2x user exchangable lens
Q10F
The Q10F is a 3 axis, 1/3" CMOS sensor camera with a 10x optical zoom. With a wide range of movement combined with a SD card storage capacity of up to 32GB and a lightweight design, the Q10F is an ideal payload for security and inspection based applications.
Q30TIRM Pro
The Q30TIRM Pro is a powerful 3-axis gimbal payload that is packed full of features.
It integrates a Sony Exmore R CMOS module with a 30X optical zoom it also has the ability to clearly display images even in poor lighting conditions.
It features a 3km range finder that also can issue GPS coordinates to pinpoint its distance and exact location.
It also has a 340x480 thermal camera to assist in various aerial applications.
Q20 T Pro 2
The Viewpro Q30T Pro 2 is a 30x optical zoom object tracking gimbal camera.
It sports a Sony 1/2.8" "Exmoor R" CMOS sensor and has a local SD card storage capacity of up to 128GB.
Z36T Cube
The Viewpro Z36T Cube is powered by a 1/1.9" CMOS sensor module. Thanks to starlight level ultra-low illumination, the Z36T can still clearly display image features, even in a poorly lit environment.
It sports a 36x optical zoom and local storage SD supports up to 128GB.
Are you operating in a sector that needs a specialist sensor that combines multiple imaging capabilities?
In industries where precision and actionable data are critical, the Sentera 6X series, coupled with a Gremsy quick release gimbals for effortless integration to our drones, offer excellent options and results.
6X Multispectral
The Sentera 6X sensor: the ultimate solution for high-res RGB and accurate radiometric multispectral imagery.
The 6X captures synchronised, radiometric multispectral imagery at 3cm GSD and high-resolution RGB imagrey at 1cm GSD, suitable for advanced analytics, all in a single sensor and flight session.
Suitable for diverse environmental conditions and across various use cases.
6X Thermal
The Sentera 6X Thermal sensor: synchronised thermal, multispectral and high-res RGB imagery in one flight.
With four 3.2MP multispectral imagers, a 20MP RGB imager and a FLIR Boson 320 thermal imager, the 6X Thermal ensures precise data.
6X Thermal Pro
The Sentera 6X Thermal Pro sensor: synchronised thermal, multispectral and high-res RGB imagery in one flight.
Precision and clarity redefined.
With four 3.2MP multispectral imagers, a 20MP RGB imager and a FLIR Boson 640 thermal imager, the 6X Thermal Pro delivers four times the resolution of the 6X Thermal, ensuring unparalleled data accuracy.
The Sentera 6X Thermal Pro sets a new standard in multi-sensing data capture.
65R
The 65R is an ultra-high-resolution aerial RGB sensor compatible with the Dark Matter UAVs.
With a sustained 3 Hz capture rate of 65 MP global shutter RGB imagery, the 65R produces exceptional visual-band imagery.
With ample 512GB high-speed internal storage, high-rate capture speed and light-weight gimbal stabilization, it enables longer flights, covering more area.
Unmatched in its class, the 65R provides outstanding value, ensuring optimal results for every project.
At Clogworks®, not only can we integrate virtually any payload to our Dark Matter® platforms, we can design and manufacture custom payloads to suit every need.
Water Bottle Dropper
Working on a humanitarian project? Clogworks has developed a multi water bottle dropper that can release one bottle at a time and has the capacity of carrying 6 to people in need in a quick and efficient manner.
Cargo Delivery Boxes
Working on a UAV delivery project? Clogworks can manufacture a wide range of cargo boxes, tailored to your exact requirements, they can be IP rated and are securely attached to the payload rails on the aircraft. Transport your cargo securely and safely, whatever the weather!
Loudspeaker
Get the message across effortlessly with the Clogworks 100W (125db) loudspeaker. It can be used in conjunction with lights, cameras and other payloads to create the perfect solution to locate an injured person and communicate with them.
Spotlight
Find a subject or light up a vast area with ease using the Clogworks 100W LED searchlight.
With over 40 years of experience in R&D, and manufacturing of laser rangefinders, distance meters and scanners, RIEGL are one of the world leaders in producing LiDAR scanners for unmanned aircraft.
Unmanned LiDAR platforms are now enabling surveyors to undertake operations in areas previously deemed too difficult to reach or too dangerous to survey using traditional methods.
The Dark Matter® hX Gen 2 paired with some RIEGL LiDAR scanners present the perfect combination of a reliable, safe and proven aircraft carrying scanners that can produce a highly accurate point cloud for various aerial applications.
MiniVUX-3UAV
The RIEGL miniVUX-3UAV is an extremely lightweight airborne laser scanner, designed specifically for integration with UAV. The sister type of the proven RIEGL miniVUX-2UAV and RIEGL miniVUX-1UAV sensor offers a selectable 100 kHz, 200 kHz, and 300 kHz laser pulse repetition rate (PRR). With 300 kHz PRR, the sensor provides up to 100,000 measurements per second at 120° FoV and thus a dense point pattern on the ground for UAV-based applications that allows the acquisition of small objects.
VUX-120(23)
The RIEGL VUX-120²³ is a lightweight and versatile airborne laser scanner offering a wide field of view of 100 degrees and an extremely high pulse repetition rate of up to 2.4 MHz.
The measuring beam of the RIEGL VUX-120²³ is consecutively emitted in three different directions: it alternates from strictly nadir, to +10 degrees forward, and to -10 degrees backward.
It is perfectly suited for high point density corridor mapping applications.
YellowScan manufacture ultra-light and easy to use UAV based data collection tools. With more than ten years of experience, YellowScan devices are field tested all over the world in a wide array of environments and can cover many applications from forestry to powerline inspections.
The lightweight YellowScan payloads are easily mounted underneath a Dark Matter® qD Gen 2 without compromising flight times.
YellowScan Navigator
The Navigator is a bathymetric LiDAR scanner perfect for shallow waters surveying and that ensures continuity between underwater points and the surrounding terrain.
With a 44-degree field of view, the maximum angle for a green laser to perform underwater, it can be flown at up to 100m AGL.
The Navigator features an embedded camera (global shutter) that can be used for colorization purposes.
The Navigator, weighing just 3.7kg (excl. battery), can easily be integrated into our Dark Matter hX Gen 2 platform.
Mapper
The incredibly lightweight Mapper doesn't sacrifice accuracy and features in order to save weight. With one of the best cost-performance ratios on the market, the Mapper features a Livox Horizon Laser Scanner, an Applanix APX-15 IMU and a high performance GNSS antenna. Furthermore, the Mapper can be powered from our Dark Matter platform or run on its own battery. It boasts IP55 protection and has been designed with practicality in mind to help protect it during everyday use.
Mapper +
The Mapper + is a lightweight LiDAR scanner that produces a high point density even when flying at higher altitudes. The Mapper + is equipped with a Livox AVIA laser scanner as well as an Applanix APX-15UAV IMU. This allows it to achieve high levels of precision and accuracy, even when flying at altitudes of 120m AGL. Like the Mapper, the Mapper + can easily be integrated in to our Dark Matter platforms and can be powered directly from our drone or by its own removable battery.
Since 2003, GeoCue are leaders in LiDAR mapping hardware and software. GeoCue joined Microdrones as another portfolio company of mdGroup in 2022.
GeoCue offers a complete range of professional LiDAR mapping software, training, and support.
Their TrueView range of LiDARs can be seamlessly integrated into the Dark Matter® platform.
TV535c
The Trueview TV535c is a very capable light-weight Lidar (only 2 kg fully integrated) with 3 returns and 3 integrated 26MP cameras (1 nadir and 2 obliques).
Scanner Performance:
Precision: 5 mm
Accuracy: 20 mm
It comes with LP360 software for data processing.
TV540
The Trueview TV535c is a very capable light-weight Lidar with 8 returns and a 45 MP Global Shutter Full frame Camera.
Scanner Performance:
Precision: 5 mm
Accuracy: 15 mm
It comes with LP360 software for data processing.
Need to carry a specialist payload for surveying or other aerial camera based work?
Using Gremsy gimbals, we can integrate a wide array of specialist payloads to suit your exact needs.
Clogworks® have integrated various payloads with Gremsy gimbals since 2015 and are the perfect solution for mounting nearly any type of camera.
S1
Meet S1V3 - the most lightweight yet multi-load gimbal for mappers, surveyors and industry experts in any aerial missions.
This 3-axis gimbal has a pan axis control of ±345°, a tilt axis of ±120° and a roll axis of ±45° and can carry a camera of up to 750g.
It is compatible with the following camera types:
- Flir
- Workswell Wiris
- TeAx
- Keii
- MicaSense RED Edge
- Sony
Pixy U
Adapting to various aerial missions has never been so fast and straightforward. Thanks to tilt axis rebuilt, just one Pixy U is enough to fit multiple camera mounting. It's time to get the best from your universal cameras system.
Small, ultra-lightweight, and effortless to use. Pixy U is the indispensable gimbal for any circumstances.
The Pixy U 3-axis gimbal has a controlable pan axis of ±330°, tilt axis of +135° to -45° and a roll axis of ±45° and can carry a maximum payload of 465g.
It is compatible with a wide range of cameras.
T3
Gremsy T3 (version 3) is the most advanced 3-axis camera stabilizer ready to fly with many industrial cameras for inspection, mapping and other demanding applications. Featuring onboard HDMI and AUX ports, the T3 ensures simple and clean setup as well as increased portability for your system.
The T3, 3-axis gimbal can handle a payload of up to 1.7kg and has a a controllable pan axis range of ±345°, tilt axis of ±120° and a roll axis of ±45° and can be used with a wide range of cameras, including:
- Workswell Wiris
- Canon
- Pentax
- Panasonic
- Sony
- Phase One
- UMC
- FUJIFILM
Established in 2010, Workswell develop and manufacture world leading infrared and optical payloads for UAVs. Workswell's payloads cover a wide range of applications, like search&rescue, security, gas detection and agriculture just to name a few.
A Workswell's payload can be seamlessly integrated in to any Dark Matter® aircraft to deliver unprecedented levels of accuracy.
Wiris Enterprise
The Wiris Enterprise is an advanced multi sensor camera specifically designed to be used with UAVs. The enterprise can cover a wide range of aerial applications and only weighs 680 grams.
The payload boasts:
- 30X optical RGB zoom with night vision mode
- 640 x 512 thermal camera with an IR super resolution mode and 12 step digital zoom.
- IP54 rated (IP66 certification avialable on request)
- Optional laser range finder (up to 1500m)
Wiris Pro
The Wiris Pro is a radiometric dual sensor camera with an IR sensor resolution of 640x512px and a 10x zoom on daylight camera.
It comes with: 128GB or 256GB SSD internal
9Hz or 30Hz frame rate
Lens of 9mm, 13mm or 19mm
50mK sensitivity
The Wiris ProSC option offers 30mK sensitivity for unmatched measurement accuracy.
Wiris ProSC
The Workswell WIRIS ProSC is a state-of-the-art thermal imaging camera designed for the most demanding applications, including geological, archeological, and forestry studies, ecological and environmental research, structural investigations into dams, chimneys, and bridges, and a variety of other advanced projects.
WIRIS PROSC FEATURES:
WIRIS Data SDK and Ethernet Stream SDK
Premium temperature sensitivity – 30 mK
2x sw CorePlayer license
2x user exchangable lens
Are you operating in a sector that needs a specialist sensor that combines multiple imaging capabilities?
In industries where precision and actionable data are critical, the Sentera 6X series, coupled with a Gremsy quick release gimbals for effortless integration to our drones, offer excellent options and results.
MiniVUX-3UAV
The RIEGL miniVUX-3UAV is an extremely lightweight airborne laser scanner, designed specifically for integration with UAS/UAV/RPAS. The sister type of the proven RIEGL miniVUX-2UAV and RIEGL miniVUX-1UAV sensor offers a selectable 100 kHz, 200 kHz, and 300 kHz laser pulse repetition rate (PRR). With 300 kHz PRR, the sensor provides up to 100,000 measurements per second at 120° FoV and thus a dense point pattern on the ground for UAV-based applications that require the acquisition of small objects.
Wiris Pro
The Wiris Pro is a radiometric dual sensor camera with an IR sensor resolution of 640x512px and a 10x zoom on daylight camera.
It comes with: 128GB or 256GB SSD internal
9Hz or 30Hz frame rate
Lens of 9mm, 13mm or 19mm
50mK sensitivity
The Wiris ProSC option offers 30mK sensitivity for unmatched measurement accuracy.
Wiris ProSC
The Workswell WIRIS ProSC is a state-of-the-art thermal imaging camera designed for the most demanding applications, including geological, archeological, and forestry studies, ecological and environmental research, structural investigations into dams, chimneys, and bridges, and a variety of other advanced projects.
WIRIS PROSC FEATURES:
WIRIS Data SDK and Ethernet Stream SDK
Premium temperature sensitivity – 30 mK
2x sw CorePlayer license
2x user exchangable lens
Wiris Security
The Wiris Security is a dual sensor camera with an excellent IR sensor resolution of 800x600px and a 30x RGB optical zoom.
It comes with: 256GB or 512GB SSD internal
9Hz or 25Hz frame rate
Lens of 35mm
Description Title
The Workswell WIRIS Agro R is the first device of its kind. Designed to map water stress across large areas, the Agro has a critical role to play in the field of precision agriculture. The device facilitates the determination of the water stress value in a given stand of plants. This information can then be used to determine yield maps, optimize irrigation, and fine-tune water management strategies.
At Clogworks®, not only can we integrate virtually any payload to our Dark Matter® platforms, we can design and manufacture custom payloads to suit every need.
MiniVUX-3UAV
The RIEGL miniVUX-3UAV is an extremely lightweight airborne laser scanner, designed specifically for integration with UAS/UAV/RPAS. The sister type of the proven RIEGL miniVUX-2UAV and RIEGL miniVUX-1UAV sensor offers a selectable 100 kHz, 200 kHz, and 300 kHz laser pulse repetition rate (PRR). With 300 kHz PRR, the sensor provides up to 100,000 measurements per second at 120° FoV and thus a dense point pattern on the ground for UAV-based applications that require the acquisition of small objects.
Established in 2005, Shenzhen Viewpro is a hi-tech manufacturer specialising in R&D and manufacturing of
cutting-edge zoom gimbal cameras for industrial and commercial Unmanned Aerial Vehicles.
Viewpro manufacture various gimbal mounted payloads, most of which can be seamlessly integrated in to the Dark Matter® platform.
Wiris Pro
The Wiris Pro is a radiometric dual sensor camera with an IR sensor resolution of 640x512px and a 10x zoom on daylight camera.
It comes with: 128GB or 256GB SSD internal
9Hz or 30Hz frame rate
Lens of 9mm, 13mm or 19mm
50mK sensitivity
The Wiris ProSC option offers 30mK sensitivity for unmatched measurement accuracy.
Wiris ProSC
The Workswell WIRIS ProSC is a state-of-the-art thermal imaging camera designed for the most demanding applications, including geological, archeological, and forestry studies, ecological and environmental research, structural investigations into dams, chimneys, and bridges, and a variety of other advanced projects.
WIRIS PROSC FEATURES:
WIRIS Data SDK and Ethernet Stream SDK
Premium temperature sensitivity – 30 mK
2x sw CorePlayer license
2x user exchangable lens
Wiris Security
The Wiris Security is a dual sensor camera with an excellent IR sensor resolution of 800x600px and a 30x RGB optical zoom.
It comes with: 256GB or 512GB SSD internal
9Hz or 25Hz frame rate
Lens of 35mm
Description Title
The Workswell WIRIS Agro R is the first device of its kind. Designed to map water stress across large areas, the Agro has a critical role to play in the field of precision agriculture. The device facilitates the determination of the water stress value in a given stand of plants. This information can then be used to determine yield maps, optimize irrigation, and fine-tune water management strategies.
6X Multispectral
The Sentera 6X sensor: the ultimate solution for high-res RGB and accurate radiometric multispectral imagery.
The 6X captures synchronised, radiometric multispectral imagery at 3cm GSD and high-resolution RGB imagrey at 1cm GSD, suitable for advanced analytics, all in a single sensor and flight session.
Suitable for diverse environmental conditions and across various use cases.
6X Thermal
The Sentera 6X Thermal sensor: synchronised thermal, multispectral and high-res RGB imagery in one flight.
With four 3.2MP multispectral imagers, a 20MP RGB imager and a FLIR Boson 320 thermal imager, the 6X Thermal ensures precise data.
6X Thermal Pro
The Sentera 6X Thermal Pro sensor: synchronised thermal, multispectral and high-res RGB imagery in one flight.
Precision and clarity redefined.
With four 3.2MP multispectral imagers, a 20MP RGB imager and a FLIR Boson 640 thermal imager, the 6X Thermal Pro delivers four times the resolution of the 6X Thermal, ensuring unparalleled data accuracy.
The Sentera 6X Thermal Pro sets a new standard in multi-sensing data capture.
65R
The 65R is an ultra-high-resolution aerial RGB sensor compatible with the Dark Matter UAVs.
With a sustained 3 Hz capture rate of 65 MP global shutter RGB imagery, the 65R produces exceptional visual-band imagery.
With ample 512GB high-speed internal storage, high-rate capture speed and light-weight gimbal stabilization, it enables longer flights, covering more area.
Unmatched in its class, the 65R provides outstanding value, ensuring optimal results for every project.
Water Bottle Dropper
Working on a humanitarian project? Clogworks has developed a multi water bottle dropper that can release one bottle at a time and has the capacity of carrying 6 to people in need in a quick and efficient manner.
Cargo Delivery Boxes
Working on a UAV delivery project? Clogworks can manufacture a wide range of cargo boxes, tailored to your exact requirements, they can be IP rated and are securely attached to the payload rails on the aircraft. Transport your cargo securely and safely, whatever the weather!
Loudspeaker
Get the message across effortlessly with the Clogworks 100W (125db) loudspeaker. It can be used in conjunction with lights, cameras and other payloads to create the perfect solution to locate an injured person and communicate with them.
Searchlight
Find a subject or light up a vast area with ease using the Clogworks 100W LED searchlight.
Q10F
The Q10F is a 3 axis, 1/3" CMOS sensor camera with a 10x optical zoom. With a wide range of movement combined with a SD card storage capacity of up to 32GB and a lightweight design, the Q10F is an ideal payload for security and inspection based applications.
Q30TIRM Pro
The Q30TIRM Pro is a powerful 3-axis gimbal payload that is packed full of features.
It integrates a Sony Exmore R CMOS module with a 30X optical zoom it also has the ability to clearly display images even in poor lighting conditions.
It features a 3km range finder that also can issue GPS coordinates to pinpoint its distance and exact location.
It also has a 340x480 thermal camera to assist in various aerial applications.
Q30T Pro 2
The Viewpro Q30T Pro 2 is a 30x optical zoom object tracking gimbal camera.
It sports a Sony 1/2.8" "Exmoor R" CMOS sensor and has a local SD card storage capacity of up to 128GB.
Z36T Cube
The Viewpro Z36T Cube is powered by a 1/1.9" CMOS sensor module. Thanks to starlight level ultra-low illumination, the Z36T can still clearly display image features, even in a poorly lit environment.
It sports a 36x optical zoom and local storage SD supports up to 128GB.
MiniVUX-3UAV
The RIEGL miniVUX-3UAV is an extremely lightweight airborne laser scanner, designed specifically for integration with UAS/UAV/RPAS. The sister type of the proven RIEGL miniVUX-2UAV and RIEGL miniVUX-1UAV sensor offers a selectable 100 kHz, 200 kHz, and 300 kHz laser pulse repetition rate (PRR). With 300 kHz PRR, the sensor provides up to 100,000 measurements per second at 120° FoV and thus a dense point pattern on the ground for UAV-based applications that require the acquisition of small objects.
Are you operating in a sector that needs a specialist sensor that combines multiple imaging capabilities?
In industries where precision and actionable data are critical, the Sentera 6X series, coupled with a Gremsy quick release gimbals for effortless integration to our drones, offer excellent options and results.
Wiris Pro
The Wiris Pro is a radiometric dual sensor camera with an IR sensor resolution of 640x512px and a 10x zoom on daylight camera.
It comes with: 128GB or 256GB SSD internal
9Hz or 30Hz frame rate
Lens of 9mm, 13mm or 19mm
50mK sensitivity
The Wiris ProSC option offers 30mK sensitivity for unmatched measurement accuracy.
Wiris ProSC
The Workswell WIRIS ProSC is a state-of-the-art thermal imaging camera designed for the most demanding applications, including geological, archeological, and forestry studies, ecological and environmental research, structural investigations into dams, chimneys, and bridges, and a variety of other advanced projects.
WIRIS PROSC FEATURES:
WIRIS Data SDK and Ethernet Stream SDK
Premium temperature sensitivity – 30 mK
2x sw CorePlayer license
2x user exchangable lens
Wiris Security
The Wiris Security is a dual sensor camera with an excellent IR sensor resolution of 800x600px and a 30x RGB optical zoom.
It comes with: 256GB or 512GB SSD internal
9Hz or 25Hz frame rate
Lens of 35mm
Description Title
The Workswell WIRIS Agro R is the first device of its kind. Designed to map water stress across large areas, the Agro has a critical role to play in the field of precision agriculture. The device facilitates the determination of the water stress value in a given stand of plants. This information can then be used to determine yield maps, optimize irrigation, and fine-tune water management strategies.
6X Multispectral
The Sentera 6X sensor: the ultimate solution for high-res RGB and accurate radiometric multispectral imagery.
The 6X captures synchronised, radiometric multispectral imagery at 3cm GSD and high-resolution RGB imagrey at 1cm GSD, suitable for advanced analytics, all in a single sensor and flight session.
Suitable for diverse environmental conditions and across various use cases.
6X Thermal
The Sentera 6X Thermal sensor: synchronised thermal, multispectral and high-res RGB imagery in one flight.
With four 3.2MP multispectral imagers, a 20MP RGB imager and a FLIR Boson 320 thermal imager, the 6X Thermal ensures precise data.
6X Thermal Pro
The Sentera 6X Thermal Pro sensor: synchronised thermal, multispectral and high-res RGB imagery in one flight.
Precision and clarity redefined.
With four 3.2MP multispectral imagers, a 20MP RGB imager and a FLIR Boson 640 thermal imager, the 6X Thermal Pro delivers four times the resolution of the 6X Thermal, ensuring unparalleled data accuracy.
The Sentera 6X Thermal Pro sets a new standard in multi-sensing data capture.
65R
The 65R is an ultra-high-resolution aerial RGB sensor compatible with the Dark Matter UAVs.
With a sustained 3 Hz capture rate of 65 MP global shutter RGB imagery, the 65R produces exceptional visual-band imagery.
With ample 512GB high-speed internal storage, high-rate capture speed and light-weight gimbal stabilization, it enables longer flights, covering more area.
Unmatched in its class, the 65R provides outstanding value, ensuring optimal results for every project.
At Clogworks®, not only can we integrate virtually any payload to our Dark Matter® platforms, we can manufacture custom payloads to suit every need.
Water Bottle Dropper
Working on a humanitarian project? Clogworks has developed a multi water bottle dropper that can release one bottle at a time and has the capacity of carrying 6 to people in need in a quick and efficient manner.
Cargo Delivery Boxes
Working on a UAV delivery project? Clogworks can manufacture a wide range of cargo boxes, tailored to your exact requirements, they can be IP rated and are securely attached to the payload rails on the aircraft. Transport your cargo securely and safely, whatever the weather!
Loudspeaker
Get the message across effortlessly with the Clogworks 100W (125db) loudspeaker. It can be used in conjunction with lights, cameras and other payloads to create the perfect solution to locate an injured person and communicate with them.
Searchlight
Find a subject or light up a vast area with ease using the Clogworks 100W LED searchlight.
Unmanned Aerial Systems for Professionals
ABOUT US
ABOUT US
Clogworks Technologies Limited combines the latest technology with in-house expertise to design and manufacture unmanned aerial vehicles (UAVs) as well as provide operational services and consultation.
Clogworks Technologies Limited combine the latest technology with in-house expertise to design and manufacture unmanned aerial vehicles (UAVs) as well as provide operational services and consultation.
VISIT
CONNECT
t: +44 (0)1484 687989e: info@clogworks.com
Register for our Newsletter
Lee Mills Industrial Estate, Scholes, HD9 1RT, Holmfirth,
West Yorkshire,
UK.
West Yorkshire,
UK.
VISIT
Lee Mills Industrial Estate, Scholes, HD9 1RT, Holmfirth,
West Yorkshire,
UK.
West Yorkshire,
UK.
CONNECT
t: +44 (0)1484 687989e: info@clogworks.com
Register for our Newsletter
Copyright Clogworks Technologies Ltd 2014-2025
