Tethered Endurance Testing
Demonstrating how the Dark Matter® hX can stay airborne for hours
As a UK manufacturer of high quality precision engineered carbon fibre unmanned aerial vehicles (UAV/Drones) and accessories, we pride ourselves in fine tuning our products to give our customers the most of what is currently achievable.

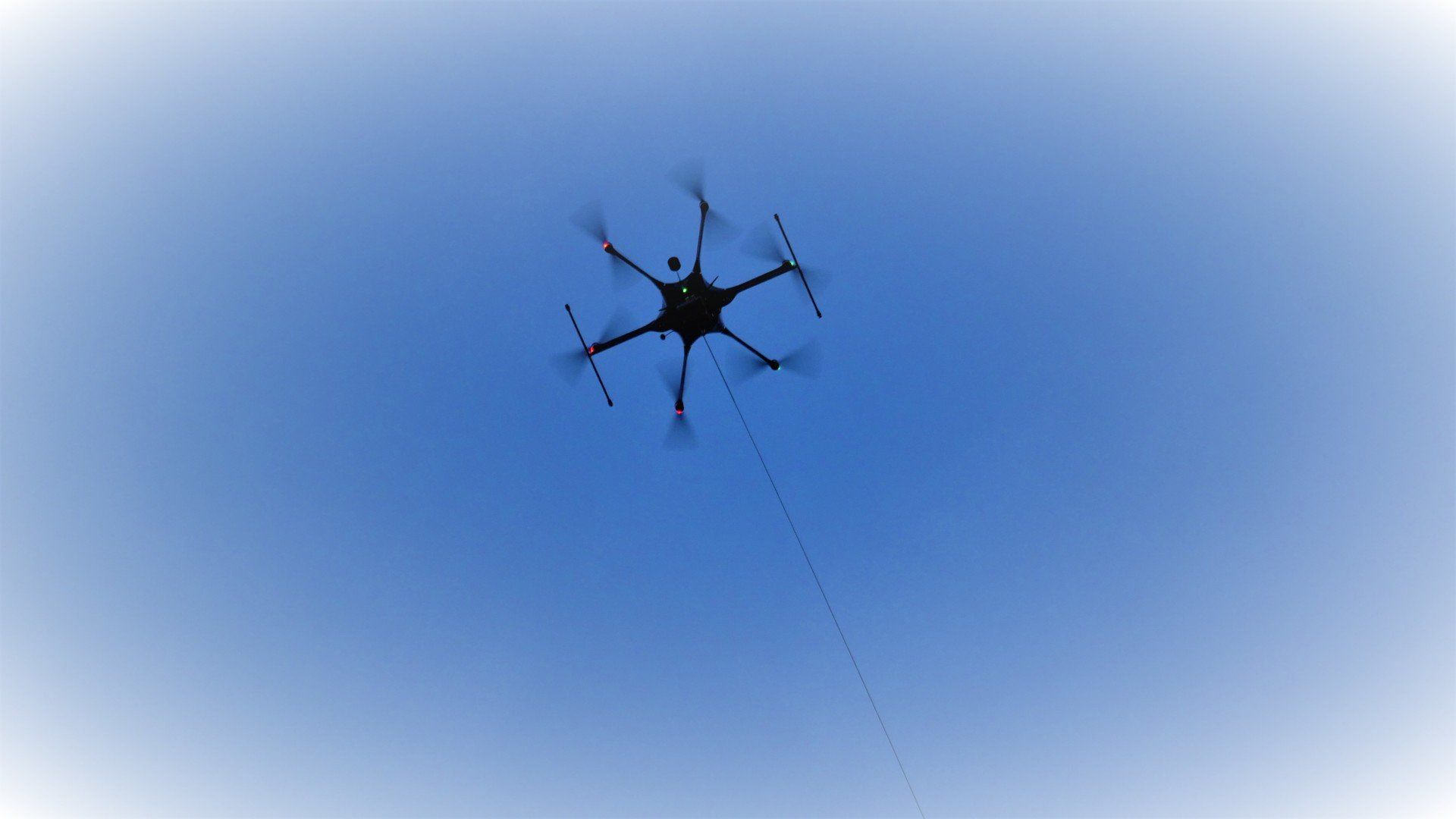

Since the start of 2018 we have been busy conducting tether testing with Dark Matter®hX in different operating and challenging conditions. Recently we completed tethered endurance tests to demonstrate some of Dark Matter® hX capabilities and specifically the ruggedness of our systems. Firstly, Dark Matter®hX was deployed for 5+ hours. This was quickly followed by another test of more than 8 hours continuous flight just a few days later, both recorded as a time lapse video.
We are pleased to share these videos of the endurance testing in the links below.
Examples of specific tether drone applications:
- Surveillance - For example: Events, Airports, Harbours, Border patrol.
- Pop-up Telecommunications (4G, WI-FI, radio…)
- Traffic Management (camera or radar based)
- Police, Fire or rescue services
- Industrial Inspection: Oil & Gas, Energy utilities, civil engineering
- Air quality monitoring
- TV Broadcast : Persistent live aerial coverage
- Lighting systems
- Anti-drone systems (drone detectors or jamming systems)
More information about tethered applications can be found in the 'Tether' section of our website.
The Dark Matter® hX comes fitted with a SmartAP-Clogworks autopilot, developed in partnership between Clogworks Technologies and Sky-Drones, and can be controlled by a ground control station with intuitive pilot interface or RC transmitter.

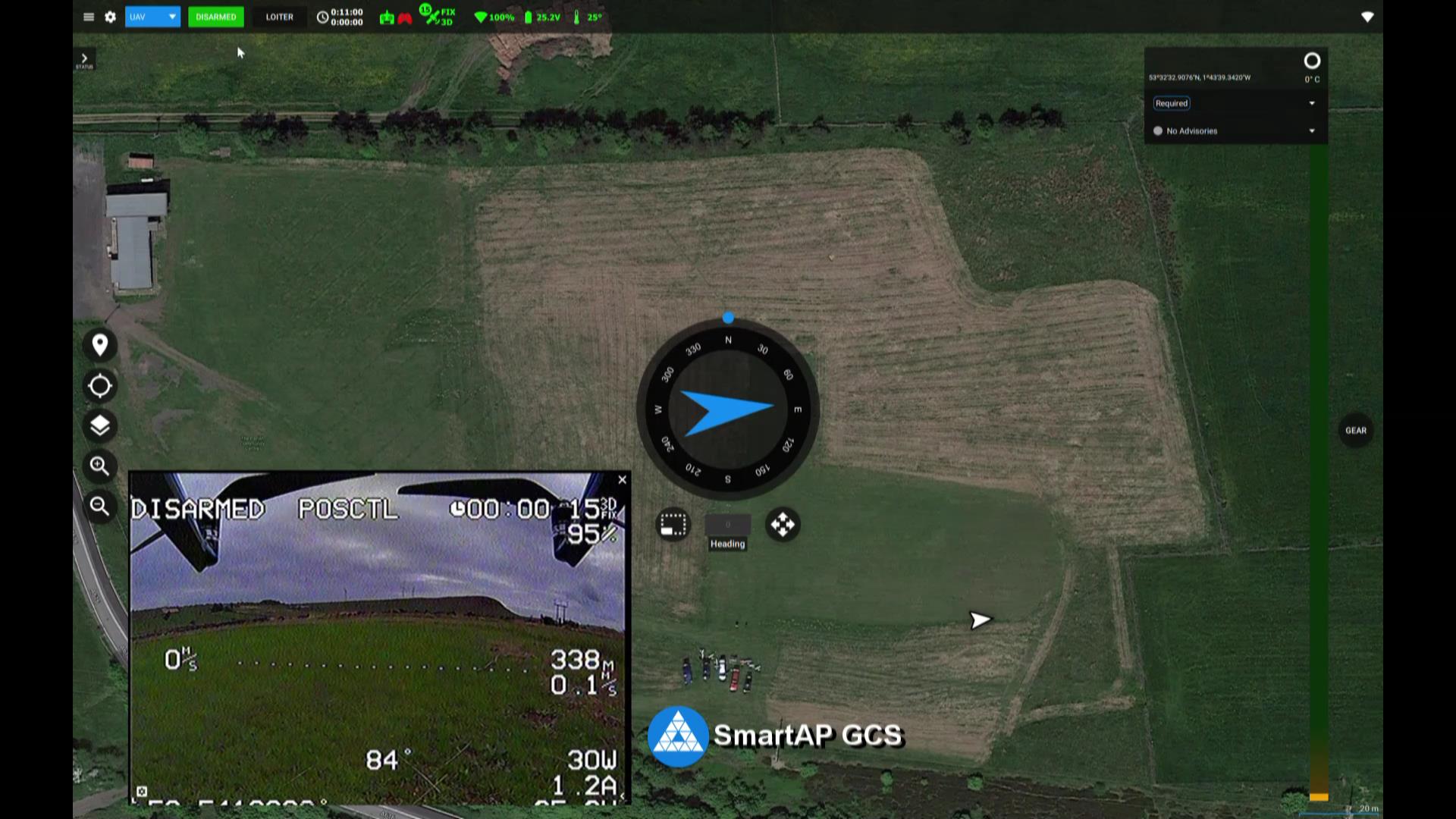

A unique & intuitive tether mode in the SmartAP Ground Control Software offers built-in functionality such as auto-takeoff, auto-landing, heading/altitude adjustments, as shown during the video.

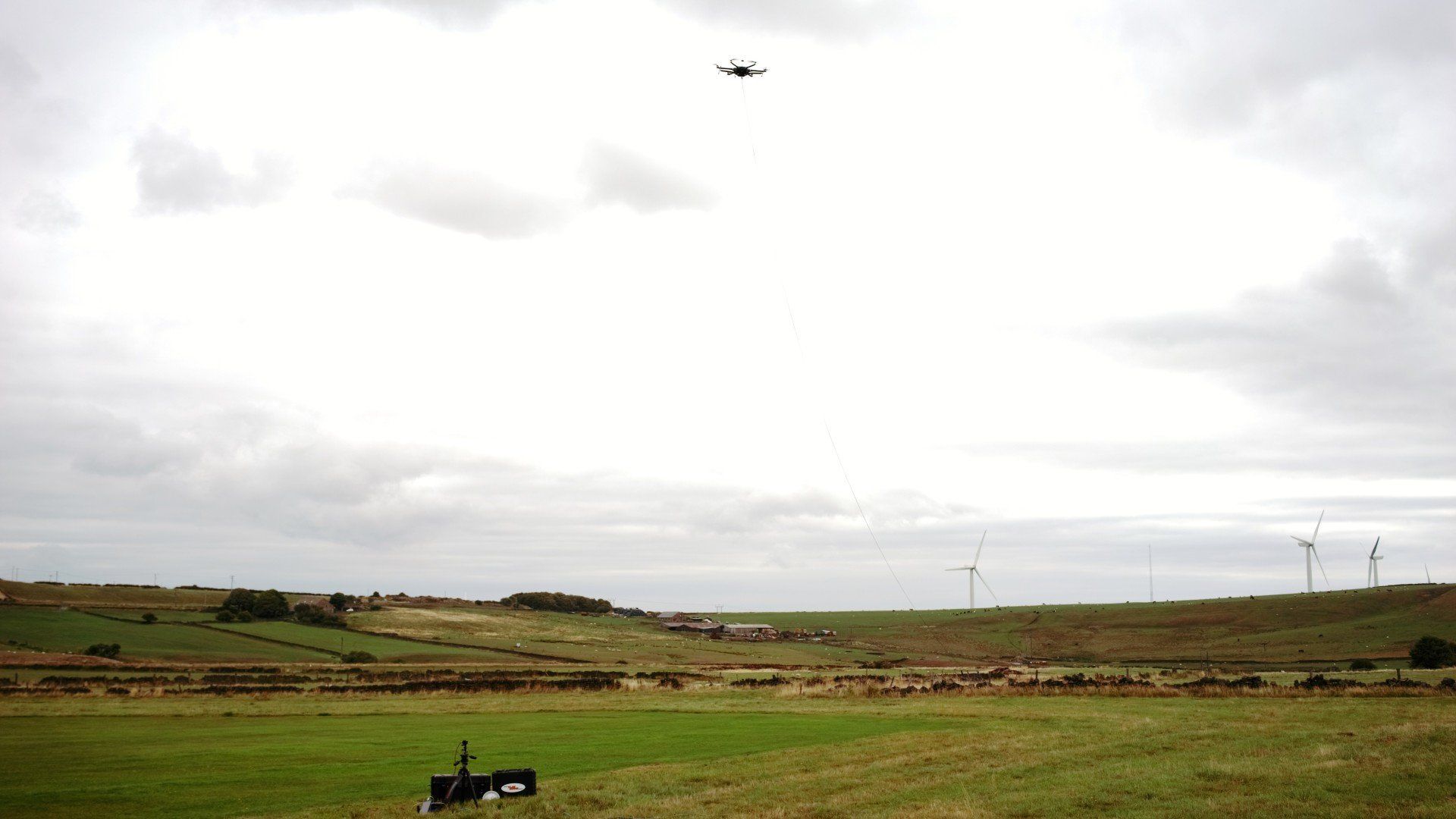

During the test,
the Dark Matter® hX was powered by a Safe-T
tether station from Elistair which can feature an automatic tether up to 100mtr. The tether provides power as well as a 100% secure data-link that is used to communicate with the aircraft as well as a video link. The tether air module is protected inside the
core of the Dark Matter® hX and has an emergency backup flight battery in case of a power failure.
The retract system allows for an
unobstructed 360° view from the payload and thanks to the aircraft's excellent efficiency
and quick-release railing system, custom & sizeable payloads can be fitted while
operating on tether, offering fantastic flexibility of the system.
The integrated forward facing FPV camera, its video feed is shown during take-off along with telemetry data, can also be used to quickly check the heading and status of the Dark Matter® hX at all times.
The Dark Matter® hX is a very efficient & versatile system whatever the use and aircraft configuration. In standard battery operated conditions it also offers world-class
performance with a long flight time (up to 45 minutes), operation in wind speed
of up to 12m/s (26.8mph, 23.3knots, 43.2km/h) and flight speeds up to
20m/s (44.5mph, 38.9knots, 72km/h).
About Sky-Drones
Sky-Drones creates professional UAV flight control system
solutions including autopilot hardware, onboard flight control software,
mobile software and cloud services. The company helps its global customers to
build and operate commercial drones for security, inspections, mapping, media
production and agriculture.
The flagship product of the company is SmartAP
Autopilot - powerful flight controller for any type of drones with
fully autonomous capabilities. SmartAP provides excellent flight performance
along with high level of redundancy and flexible payload integration.
Sky-Drones also offers SmartAP GCS - intuitive mission planning and drone
operations management software with integrated airspace awareness services
available for any platforms and operating systems. For more information, please visit: www.sky-drones.com.
About Elistair
Elistair designs and manufactures autonomous tethered drone systems for persistent intelligence, surveillance, reconnaissance (ISR) capabilities as well as high-bandwidth communications. Their products can fly for days, and are being used by major industrial companies and governments all over the world. For more information, please visit: www.elistair.com
About
Clogworks Technologies
Clogworks Technologies designs and manufactures high quality precision engineered carbon fibre unmanned aerial vehicles (UAV) and accessories. The organisation specialises in delivering UAV solutions to professional UAV operators involved in industrial, security and commercial applications, strive for great customer relations and constantly invest in innovation. For more information, please visit: www.clogworks.com.
